Bowl Lift BL

Commercial Bowl Lift BL for lifting and tipping

Commercial Bowl lift for lifting and tipping of removable bowl. The Bowl Lift lifting capacity is up to 600 kg (including bowl and dough) and it has a lifting speed of 5 meters per minute.

Available as high and low version.

Find your distributor
Commercial bowl lift glimek bl industrial dough lifter
Commercial Bowl Lift - BL for heavy lifting

    • Flexible Dough Weight

      Flexible by a wide dough weight range.

    • High Capacity

      High production speed.

    • Easy to Clean

      Product with a clean design, removable parts and hygenic materials which facilitates cleaning.

    • Low Maintenance Costs

      High quality robust parts.

    Features

    High Lifting Capacity

    The Bowl Lift lifting capacity is up to 600 kg (including bowl and dough) and it has a lifting speed of 5 meters per minute. Gives higher production capacity!

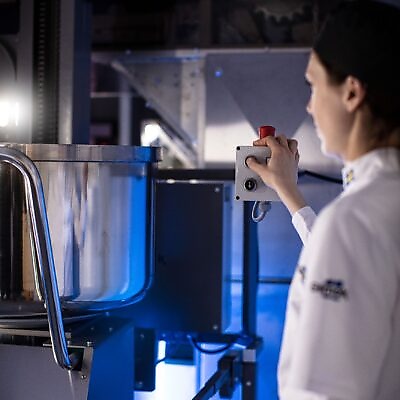

    Easy to operate

    The bowl lift is easy to operate with a simple controller with push buttons for moving the bowl up and down. No training required to operate the lift.

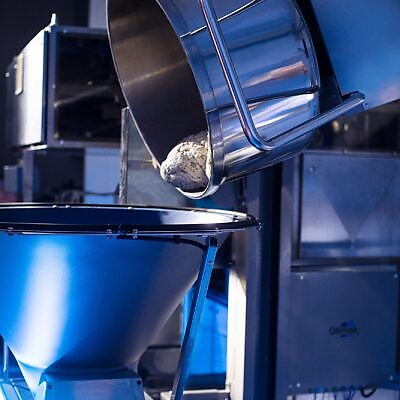

    Offset Flexible Tipping

    Offset tipping maximizes the use of the bakery floor space. Tipping either left or right as standard (to be specified upon order) and straight forward as an option.

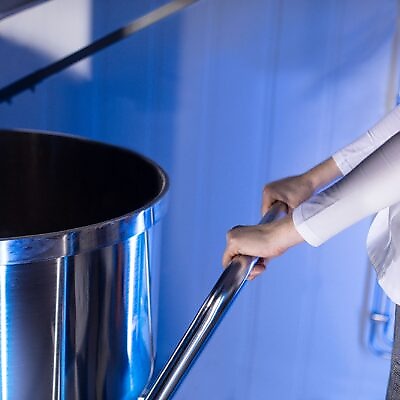

    Removable Bowl

    The Bowl can be removed, facilitates cleaning and usage.

    Safety guard with safety switch

    Two gear motors for safety

    Two gear motors lifts the bowl by two separate chains for added safety.

    Specifications

    Technical specifications

    Technical drawing to be approved, please use suitable variant of set-up according to drawing, requested from Sveba Dahlen.

    BL for MR80, MR120
    BL for MR160, MR200, MR240
    Lifting capacity Up to 600 kg (incl. bowl and dough) Up to 600 kg (incl. bowl and dough)
    Lifting speed 5 m/min 5 m/min
    Fuse (amp) 10A 10A
    Power supply 1.1 kW 1.1 kW
    Min. ceiling height, low version. SD180 + 90 L hopper 2800 mm
    Min. ceiling height, low version. SD180/SD300 + 225 L hopper 2942 mm 3110 mm
    Min. ceiling height, low version. SD600 + 225 L hopper 3040 mm
    Min. ceiling height, high version. SD180/SD300 + 90 L hopper 3895 mm 3997 mm
    Min. ceiling height, high version. SD600 + 100 L hopper 4092 mm 4230 mm
    Low version – tipping directly into the Suction Dough Divider. High version – tipping into a bulk hopper above the Suction Dough Divider.
    Note: The total height of bowl lift is normally 27 mm lower than required ceiling height.

    Measurement drawings

    Click image to enlarge.
    BL for MR80 and MR120 tipping into SD180 and SD300 with 225 liter hopper (tipping left).

    Options & Accessories

    Options

    • Electrical cabinet modifications

      • Extended electrical cabinet including control of BH when delivered together.
      • Electrical cabinet prepared for wall mounting (2 m extra cable)

    • Designed for bowls from other manufacturers

      Designed to work with bowls from other manufacturers (on request, a technical drawing of the bowl is required).

    • Straight forward tipping
