Bulk Hopper BH
Bulk Hopper with photocell controlled, automatic feeding for standard dough divider SD180/300/600. Creates an even level in the divider/sheeter hopper which gives better weight accuracy.
Photocell controlled closing/portioning system. Gives automatic feeding into the divider. Automatic photocell-controlled dosing/portioning device (compressed air required, min 6 bar) that creates an even dough level in the divider hopper and provides better weight accuracy.
Bulk Hopper BH with photocell controlled, automatic feeding.
-
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Photocell
Photocell-controlled feeding system for each dough piece. -
High Dough Weight Accuracy
High dough weight accuracy, delivers desired weight for every dough piece. -
Flexible Design
Product with flexible design – can easily be adapted to customer needs.
Features

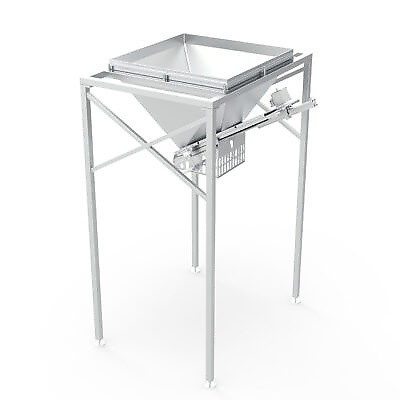

Uncomplicated design
Results in reliable operation and less risk of production loss.

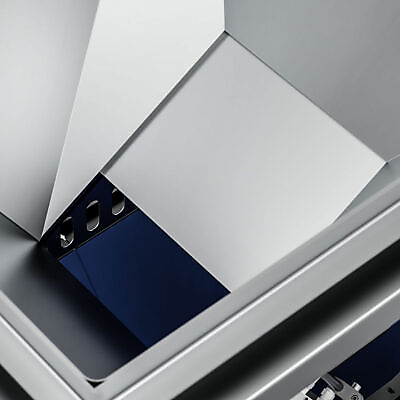

Pneumatic dough knife
Pneumatic controlled dough knife, width 400 mm as standard (other width on request).
No special fastening devices
No need for special fastening devices to the divider. Possible to adapt to a wide range of dividers.Painted frame
Painted frame included. Stainless steel frame as an option.Sliding plate on top
Sliding plate on top of Bulk Hopper is included when shown on drawing.Support bar included
Support bar between BL and BH is included when BL and BH is delivered together.Specifications
Technical Specifications
| Volume | 575 liter |
| Weight capacity | Dough up to 350 kg |
| Fuse (amp) | 10A |
| Power supply | 0.3 kW |
| Voltage | 1 x 230 V |
| Compressed air | 6 bar |

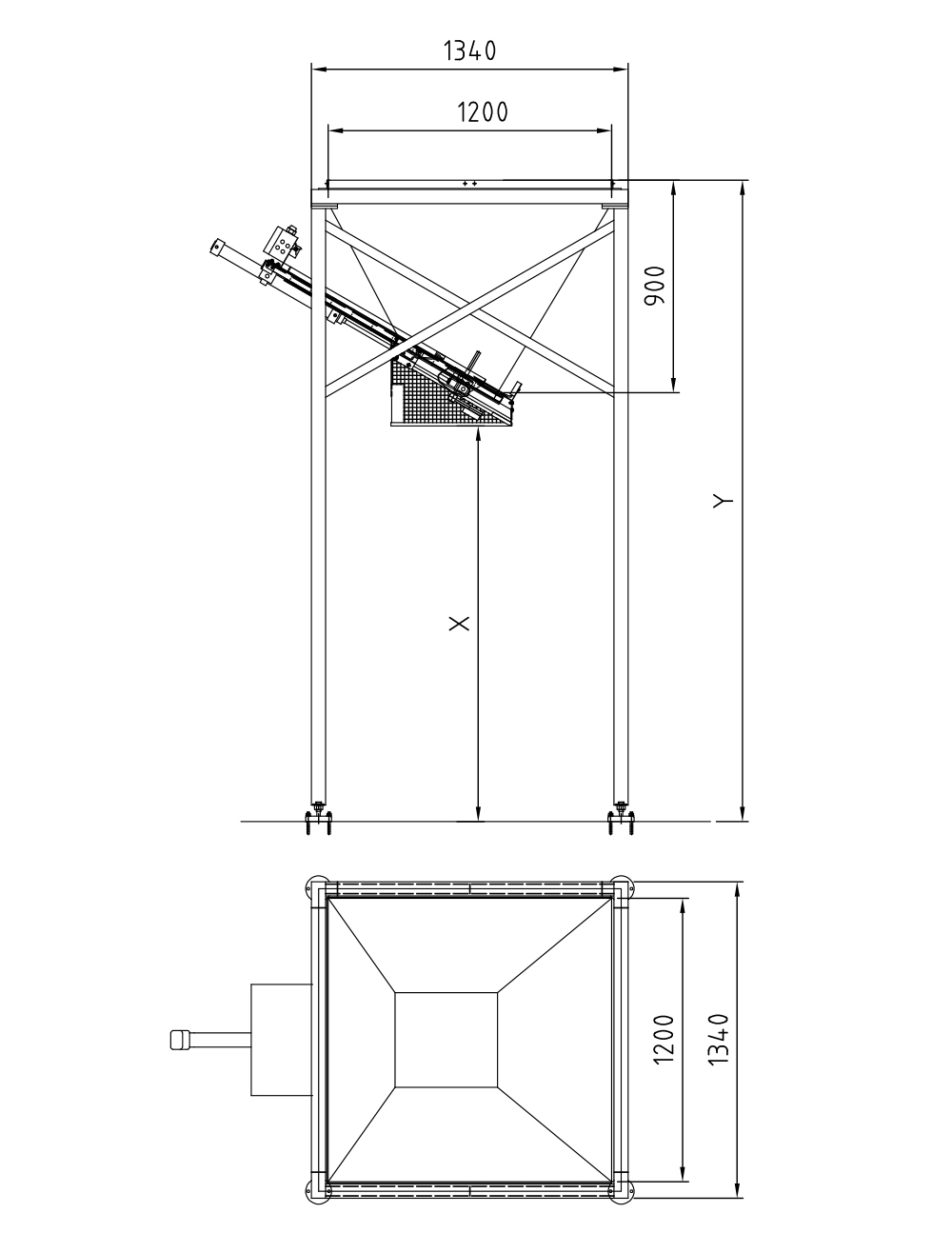

Measurement drawings
Click image to enlarge.
