Intermediate Conveyor Proofer ICP
A perfect customer-adapted conveyor proofer for all types of bakeries
The Glimek ICP is a conveyor proofer for all types of bakeries. A perfect customer-adapted system, which allows you to adapt the dough resting time and production capacity to suit the bakeries needs, either if it is a small or large bakery.
It can be made in 1–4 decks as standard and custom lengths and with capacity up to 3600 pieces/hour. The ICP has a smart space saving system and can be mounted from ceiling.
Intermediate Conveyor Proofer - ICP
-
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Flexible Design
Product with flexible design – can easily be adapted to customer needs.
Features
Customer adapted
The ICP Intermediate conveyor proofer has a very flexible design can easily be adapted to customer needs. Standard length up to 12 m on each deck and available with 1 to 4 decks.
Capacity
Capacity up to 3600 pcs/hour. Weight range 100 – 2300 grams.
Removable windows
Removable windows on both sides.Strong structure
Made of strong special aluminum profiles. Belt width 350 mm. Standard length up to 12m on each deck.Drum motors
Drum motors with frequency controlled drive as standard.Specifications
Technical Specifications
Models
ICP with or without control cabinet. Additional price per meter (proofing length).
- ICP100 – 1 deck x 5 m.
- ICP200 – 2 deck x 5 m.
- ICP300 – 3 deck x 5 m.
- ICP400 – 4 deck x 5 m.
| Capacity range | Up to 3600 dough pcs/h. or 60 dough pieces per minute. |
| Weight range (subject to capacity and dough characteristics) | 100 – 1500 grams. |
| Fuse (amp) | 16A |
| Power supply | 0.11 kW per deck as standard |

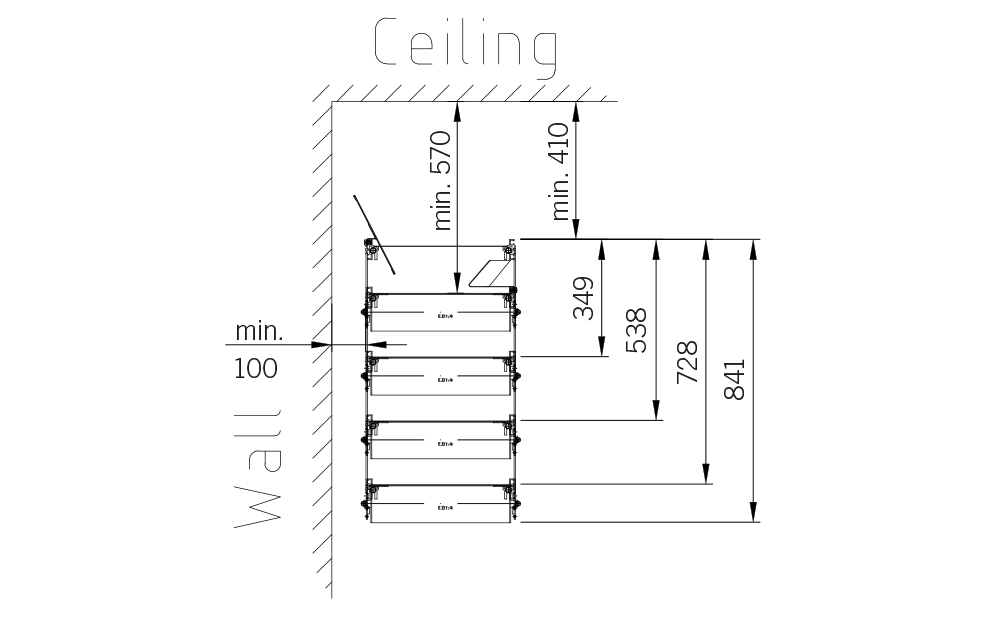

Measurement drawings
Click image to enlarge.
