Intermediate Pocket Proofer IPP
Glimek IPP – one of the most flexible pocket proofers on the market
The Glimek Intermediate Pocket Proofer IPP is one of the most flexible pocket proofers on the market. With the IPP it is easy to adjust the dough resting time to fit the needs.
It is working very quietly and the encapsulated design prevents skin from forming on the dough. The solid construction in stainless steel materials gives it a longer lifetime and makes it easy to clean.
Intermediate Pocket Proofer IPP1072
Intermediate Pocket Proofer - IPP10/48
Intermediate Proofer IPP6/22
-
Silent Operation
Machinery with very low noise level -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Modular Design
Separable and/or expandable design.
Product Overview
The Intermediate Pocket Proofer IPP is made for 6, 8, 10 or 12 pockets and modulated for easy adaption in height and width for easy installation in most facilities and according to customer needs.
Available in standard models from 132 up to 1128 effective pockets – larger proofers can be made on request.
It has a weight range between 100 and 1500 grams and a 2 different infeed system capacities; up to 1800 or 3000 pieces/hour.
Features

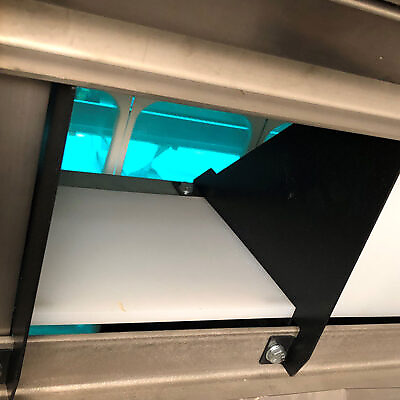

UV Lighting
UV-lighting inside the IPP Intermediate pocket proofer with on / off function. Helps to eliminate and prevent microorganisms and bacteria on the swings inside the proofer.
Common Emergency Stop
Stop all bread line components with any emergency stop in the bread line.
Modular Intermediate Pocket Proofer
Modular and flexible design. Can be expanded. Up to 1128 effective pockets as standard. Larger proofers on request. Flexible choice of infeed position, customer adapted for optimized layout.User Friendly Control Panel for Intermediate Pocket Proofer
User-friendly, movable control panel, easy to learn and to make adjustments.Robust Stainless Steel Execution
Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.Encapsulated design
Encapsulated design – prevents skin forming on the dough.Accessible layout
Operation panel easy accessible under projecting overhang. Electrical cabinet at working height with power supply and sockets for divider, rounder and moulder.Motor drive on shaft
Motor drive directly on shaft (no chains or timing belts).Non-stick
Non-stick coated transfer box.Blue plastic parts
Blue plastic parts for better detection and food security.Specifications
Technical Specifications
IPP with single infeed V-belt conveyor – max capacity 1800 pcs/h
- L=750mm, photocell controlled, non-stick coated, infeed conveyor combined with continuous pocket proofer drive.
- Variable speed on the proofer.
- Control panel under a projecting overhang, power supplies for the divider, rounder and moulder.
IPP with dual infeed conveyor – max capacity 3000 pcs/h
- L=750 mm, centrally placed, photocell controlled, non-stick coated infeed V-belt conveyors. Flap system guides the dough pieces after the rounder.
- Compressed air is required – 6 bar. Variable speed on the proofer.
- Control panel under a projecting overhang, power supplies for the divider, rounder and moulder, and the outfeed cross conveyor.
|
6 pockets per swing
|
8 pockets per swing
|
10 pockets per swing
|
12 pockets per swing
|
|
|---|---|---|---|---|
| Weight range | 100-1500 g | 100-1500 g | 100-1500 g | 100-1500 g |
| Fuse, only IPP | 16 A | 16 A | 16 A | 16 A |
| Total fuse*** | 16-25 A | 16-25 A | 16-25 A | 16-25 A |
| Power supply*** | 5.95-8.63 kW | 5.95-8.63 kW | 5.95-8.63 kW | 5.95-8.63 kW |
| Air supply (double infeed, 3000 pcs/h only) | 6 bar | 6 bar | 6 bar | 6 bar |
| Effective pockets, 22 effective swings* (low IPP) | 132 | 176 | 220 | 264 |
| Proofing time @ 1800 / 3000 pcs/h, 22 effective swings* (low IPP) | 4.3 / - | 5.7 / 3.4 | 7.1 / 4.3 | 8.5 / 5.1 |
| Effective pockets, 40 effective swings* (low IPP) | 240 | 320 | 400 | 480 |
| Proofing time @ 1800 / 3000 pcs/h, 40 effective swings* (low IPP) | 7.8 / - | 10.3 / 6.2 | 12.9 / 7.8 | 15.5 / 9.3 |
| Effective pockets, 60 effective swings* (low IPP) | 360 | 480 | 600 | 720 |
| Proofing time @ 1800 / 3000 pcs/h, 60 effective swings* (low IPP) | 11.6 / - | 15.5 / 9.3 | 19.4 / 11.6 | 23.3 / 14.0 |
| Effective pockets, 78 effective swings* (low IPP) | 468 | 624 | 780 | 936 |
| Proofing time @ 1800 / 3000 pcs/h, 78 effective swings* (low IPP) | 15.1 / - | 20.2 / 12.1 | 25.2 / 15.1 | 30.3 / 18.2 |
| Effective pockets, 26 effective swings* (high IPP) | 156 | 208 | 260 | 312 |
| Proofing time @ 1800 / 3000 pcs/h, 26 effective swings* (high IPP) | 5.0 / - | 6.7 / 4.0 | 8.4 / 5.0 | 10.1 / 6.1 |
| Effective pockets, 48 effective swings* (high IPP) | 288 | 384 | 480 | 576 |
| Proofing time @ 1800 / 3000 pcs/h, 48 effective swings* (high IPP) | 9.3 / - | 12.4 / 7.4 | 15.5 / 9.3 | 18.6 / 11.2 |
| Effective pockets, 72 effective swings* (high IPP) | 432 | 576 | 720 | 864 |
| Proofing time @ 1800 / 3000 pcs/h, 72 effective swings* (high IPP) | 14.0 / - | 18.6 / 11.2 | 23.3 / 14.0 | 27.9 / 16.8 |
| Effective pockets, 94 effective swings* (high IPP) | 564 | 752 | 940 | 1128 |
| Proofing time @ 1800 / 3000 pcs/h, 94 effective swings* (high IPP) | 18.2 / - | 24.3 / 14.6 | 30.4 / 18.2 | 36.5 / 21.9 |
*Total number of swings is always 4 more than effective number of swings.
**Not recommended in combination with the MO881 with standard infeed hopper. For use with MO881 - use together with infeed conveyor.
***Depending on connected make-up machines

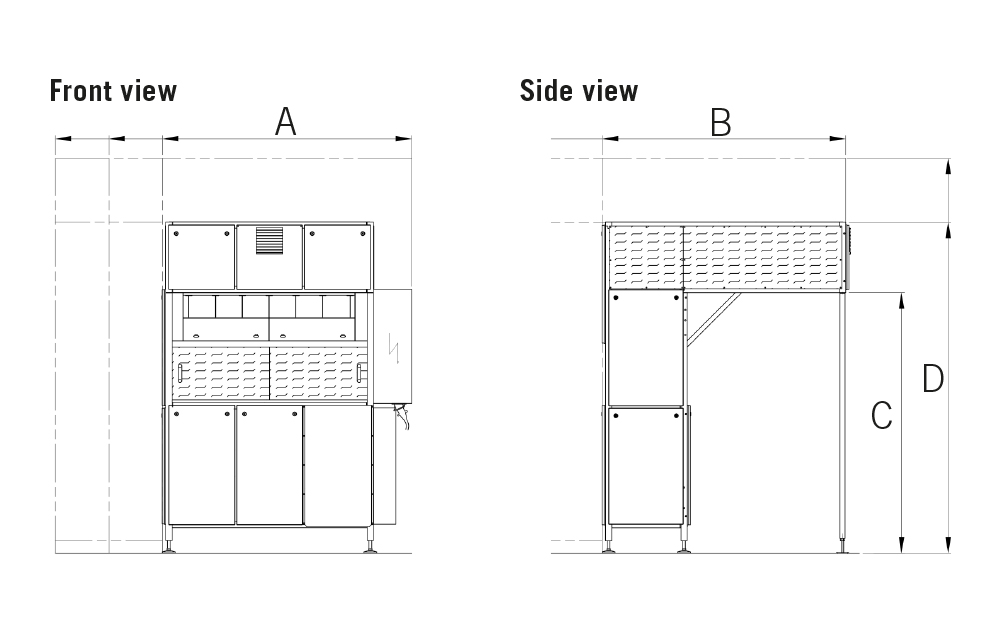

Measurement drawings
Click image to enlarge.
