Conical Rounder CR400
The CR400 conical rounder has a wide weight range and gently handles the dough into perfectly rounded balls of dough before proofing or resting. A very flexible cone rounder for all kind of bakeries, suitable for most types of dough.
Conical Rounder with capacity up to 4000 pcs/hour. Made in stainless steel for highest hygenic execution.
Conical Rounder - CR400
Special designed infeed track, manually adjustable.
-
Flexible Dough Weight
Flexible by a wide dough weight range. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Easy to Move
Machine equipped with castors – makes it easy to move. -
Flexible Design
Product with flexible design – can easily be adapted to customer needs.
Features

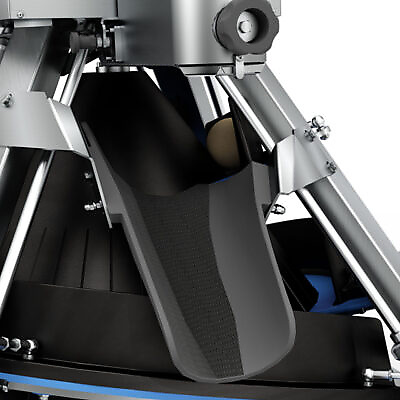

Outfeed Chute
Outfeed chute with small dimples for better outfeed properties. Outfeed always at 12 o'clock.
Non Stick Coating Cone
Non-stick coating on cone and tracks for ultimate rounding. Dough does not stick as well which makes it easy to clean.

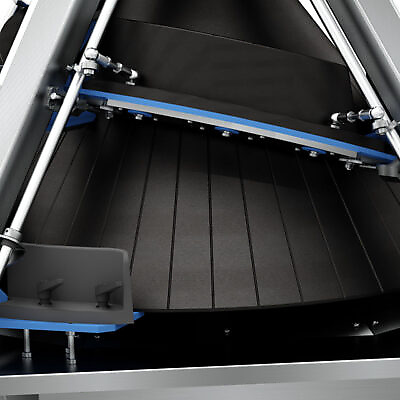

Optimized Grip
Cone with grooves for optimized dough grip.Robust Stainless Steel Execution
Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.User-friendly operation panel
User-friendly operation panel. Easy accessible from both sides of machine, wheel for adjustment of tracks can be placed either on left or right side.Flexible
Flexible and easy setup. Flexible regarding type of dough. Flexible layout with possible infeed track at 3, 6 or 9 o'clock (6 is standard). Wide variety of options make it possible to meet the customer demand.High capacity
Capacity up to 4000 pcs/h and weight range 30–1800 g. Subject to dough piece weight and characteristics.Adjustable tracks
Centrally adjustable rounding tracks for dough pressure regulation and flexible weight range.Long rounding length
Long rounding length, up to 4 m depending on infeed position.Weight adjustment handle
Weight adjustment handle at 3 or 9 o'clock.Blue plastic parts
Blue plastic parts for better detection and food safety. Blue plastic track bottom plate.Underneath cable suspension
Cable suspension underneath facilitates cleaning.High safety
High safety with two emergency stops with easy access from both sides.Specifications
Technical Specifications
| *Subject to dough piece weight and characteristics. | |
| Capacity* | Up to 4000 pieces/hour. |
|---|---|
| Weight Range* | 30 – 1800 g |
| Fuse (amp) | 16A |
| Power Supply | 1.5 kW (2.8 kW with hot and cold air blowing unit) |

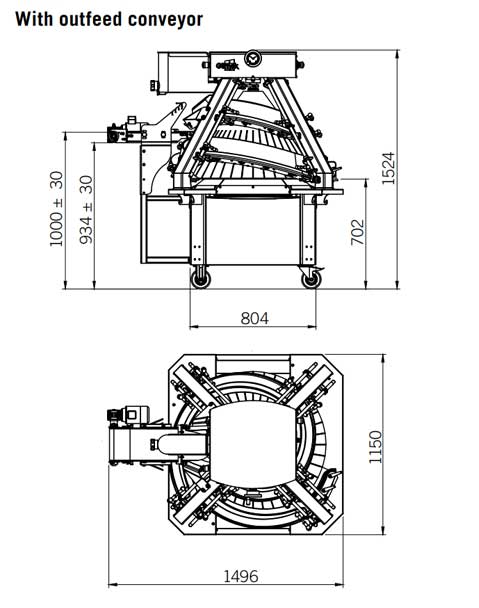

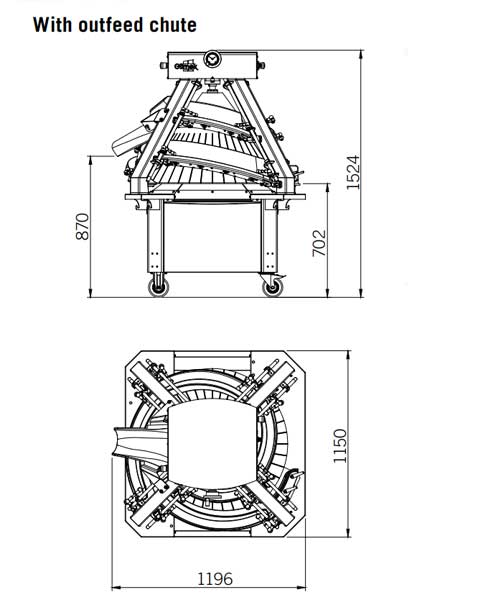

Measurement drawings
Click image to enlarge.
