Climator Unit F-Series F100

The F-Series F100 Climator Unit is a very smart and effective way of proofing to a low cost. F100 provides optimal control of humidity and temperature in both existing proofing rooms and spaces being converted into proofing rooms.

Made of stainless steel and equipped with a modern, high-quality electronic steam system for durable and reliable operation.  It covers from 10 m³ up to 40 m³ of proofing space, with up to four connected F100 devices with a master-slave connection.

Find your distributor
F-Series F100 high capacity dough fermentation proofer climate unit for proofing rooms stainless Sveba Dahlen
F-Series F100 Proofing Room Climator Unit
F-Series F100 dough fermentation proofer climate unit for bakery proofing rooms user-friendly control panel Sveba Dahlen
F-Series F100 with user-friendly, internal or external control panel
F-Series F100 dough fermentation proofer climate unit with high-quality components for bakeries Sveba Dahlen
F-Series F100 in stainless steel with hiqh-quality components and materials
F-Series F100 proofing fermentation climator unit for bakeries with hiqh-quality and movable humidity and temperature sensor sveba dahlen
F-Series F100 Climator Unit with hiqh capacity and quality temperature and humidity sensor

    • Modular Design

      Separable and/or expandable design.

    • Temperature & Humidity Control

      Temperature and humidity are set seperately to ensure optimal control in the proofing process.

    Product Overview

    The F100 is modular, which means that the proofing room can grew with growing need of fermentation. Smart and effective proofing to a low cost.

    F-Series is a complete concept of high quality proofing, fermentation has never been easier. The F-Series offers proofer solutions for all kind of bakery businesses, from industrial bakeries to artisan bakeries and supermarkets. With high quality components, innovative design and the user in focus, the F-Series can fill all needs for dough fermentation.

    Learn more about F200D and F500.

    Features

    J3 Panel

    For underbuilt proofers and F100 Climator unit. User-friendly control panel with glass screen. Easy to clean and to setup desired proofer settings.

    Robust Stainless Steel Execution

    Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.

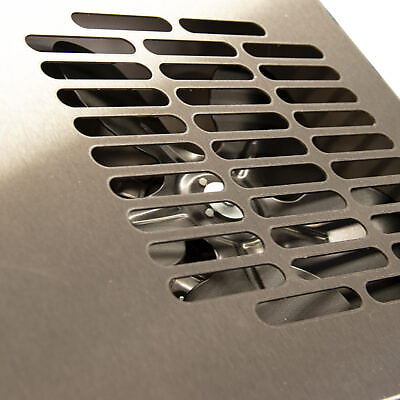

    F-Series F100 dough fermentation proofer climate unit with high-quality components for bakeries Sveba Dahlen

    Provides good air circulation in the room

    For optimal and uniform proofing. The warm and humid air is blown out through the bottom part of the duct and sent out into the proofing room via a guide plate.
    F-Series F100 high capacity dough fermentation proofer climate unit for proofing rooms black Sveba Dahlen

    High capacity, modular design

    High capacity – up to 40 m³ proofing room. Modular design – two or more F100 units can be connected in parallel with a common control (master/slave).

    Separate temperature and humidity controls

    Temperature and humidity are set seperately and can be turned on and off as required. Ensures optimal control of the humidity and temperature.

    Steam system

    Equipped with a modern, special electronic steam system. Ensures long and reliable operation.

    Specifications

    Technical specifications

    F100 with 2 to 4 units, consist of one master unit with control panel and 1-3 slave units.

    1 F100 Unit 2 F100 Units 3 F100 Units 4 F100 Units
    * Example for steam capacity m² is calculated with ceiling height: 2,5 m.
    Steam capacity for rooms up to 10 m³ 20 m³ 30 m³ 40 m³
    Steam capacity m² * 4 m² 8 m² 12 m² 16 m²
    Fermentation dough mass capacity 150 kg 300 kg 450 kg 600 kg
    Fuse (amp) 20A 20A 20A 20A
    Power supply 6 kW 12 kW 18 kW 24 kW
    Water connection 1/2” 1/2” 1/2” 1/2”
    Water supply G 3/8 G 3/8 G 3/8 G 3/8
    Drainage outlet Ø 2” Ø 2” Ø 2” Ø 2”
    Voltage 3x400V + N. 3x400V + N. 3x400V + N. 3x400V + N.
    Humidity range Ambient humidity → 95%
    Temperature range Ambient temperature → 50°C
    Power connection 1 x 4kW 2 x 4kW 3 x 4kW 4 x 4kW

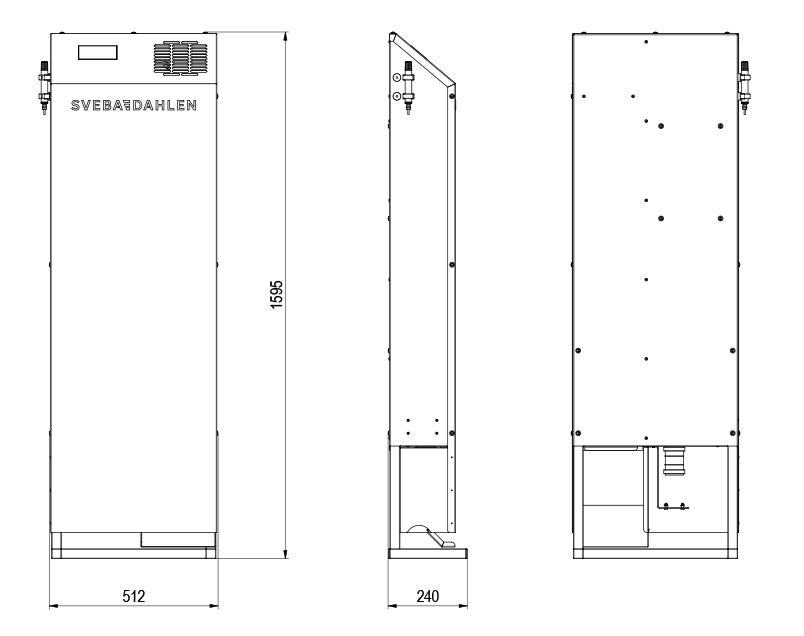

    Measurement drawings

    Click image to enlarge.

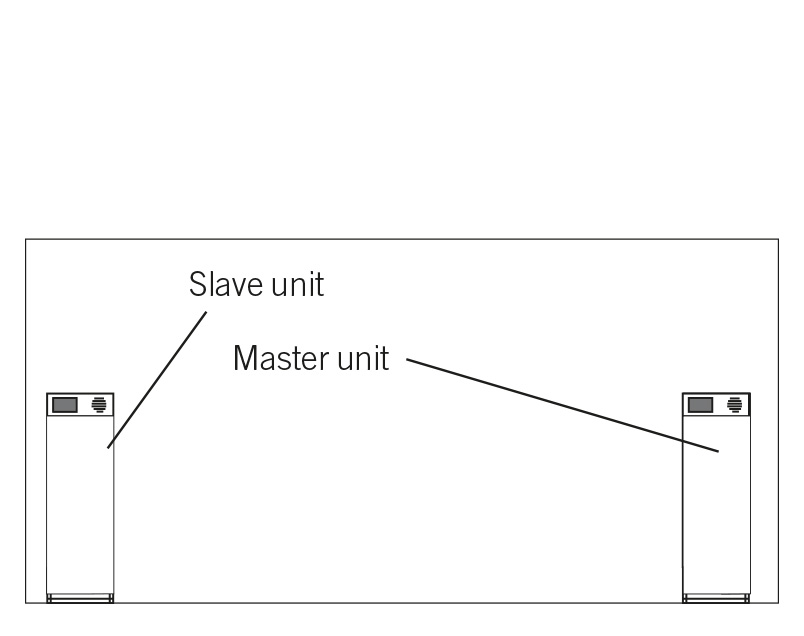

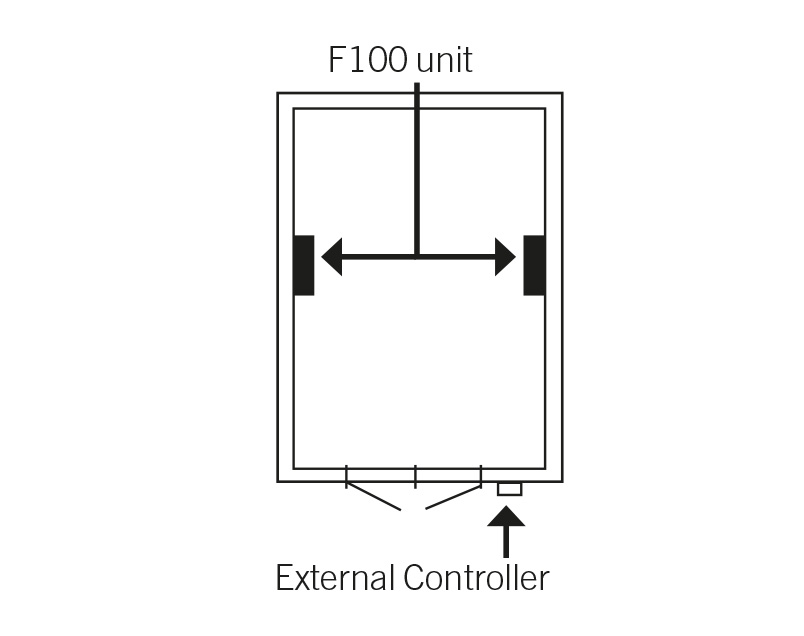

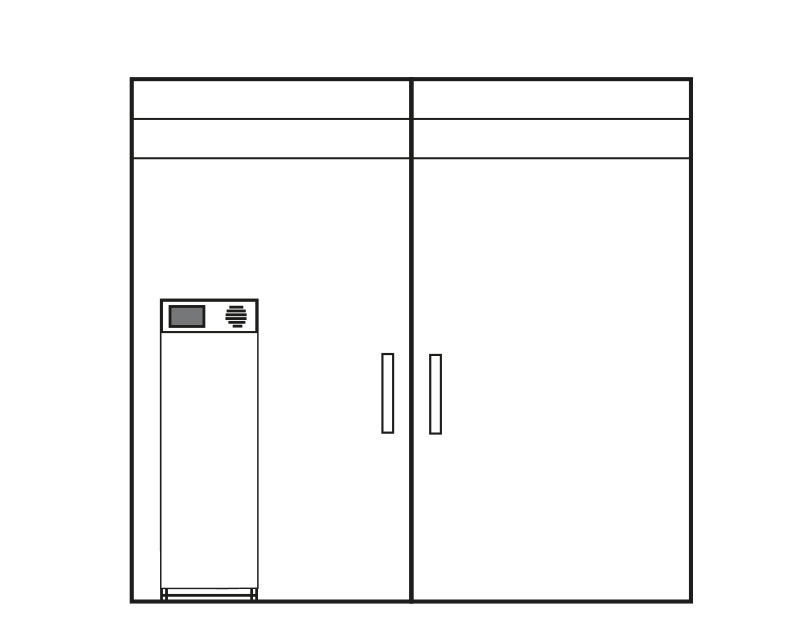

    F-Series F100 dough proofer room climator unit Measurement drawing Sveba Dahlen F-Series F100 Setup Example in proofer room Climator unit bakery F-Series F100 modular setup proofer room 2 units climator unit dough fermatation sveba dahlen F-Series F100 proofer room climator unit with external controller sveba dahlen

    Options & Accessories

    • External control panel

      The control panel can be mounted up to 10 meters from the F100 unit. Easy-to-operate for temperature and humidity control.

    • Alarm

      Sound signal alarms when a program is finished.
