Retarder Proofer F-Series F200D
The F-Series F200D Retarder/Proofer is designed for retarding and proofing products on trays. High capacity while taking up a small footprint due to its compact design.
The door’s large double-glazed window with LED lighting on the inside makes it easy to get an overview of the fermentation process on all trays. The door stays in position at 90 degrees making it easy to load the cabinet with trays.
Room for up to 14 trays
-
LED Lighting
Strong, energy-efficient light sources with daylight effect. -
Temperature & Humidity Control
Temperature and humidity are set seperately to ensure optimal control in the proofing process. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Robust & Solid Door
Easy opening and closing. The stainless steel, bead-blasted handle stays cool and provides a comfortable grip.
Product Overview
The Retarder-Proofer cabinet is made in stainless steel, which makes it easy to clean. The cabinet has rounded corners and large plane surfaces on the inside and the guides can easily be dismounted without any tools. No drainage is needed due to smart system with collector plate for defrosting- and condensation water underneath with automatic evaporation.
The F200D cabinet has a user-friendly and ergonimically placed control panel. The control panel is easy to learn and has both manual and automatic retarding and proofing programs and is programmable according to the users requirements. It makes it easy for the users to prepare the baking as early as one or more days in advance!
F-Series F200D Retarder / Proofer Cabinet Proofing
Fan system and pressure side designed to provide optimal airflow. The well-insulated cabinet maintains the desired temperature regardless of whether it is retarding or proofing. Equipped with humidity control and manual or automatic proofing programs.
The F-Series F200D Retarder/Proofer Cabinet has a sturdy, insulated door with a integrated handle making it easy to open. The door stays in place when opened 90° making it easy to load and unload the baking trays.The door is self-closing when it reaches a lower angle than 90°. When the door closes a magnetic seal keep it closed and ensures that no heat or cold leaks in. Standard door is left-hand hinged and right-hand hinged as option.
Features
Temperature & Humidity Control
Temperature and humidity are set seperately, ensures optimal control of the humidity and temperature in the proofing process and a long, reliable operation.
F-Series F200D Control Panel
A large user-friendly control panel that makes it easy to set the proofing/retarding process. Equipped with a range of functions to simplify the work for bakers everyday.

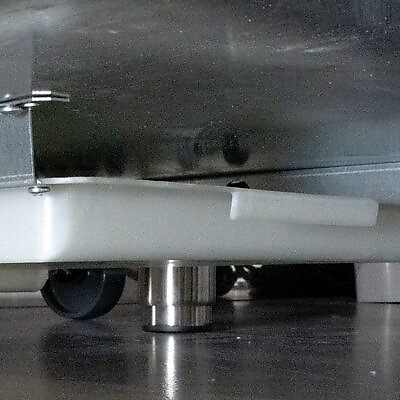

Collector plate for waste water
Automatic evaporation of defrost water. No drainage is needed. Collector plate for condensation water underneath.Sturdy door
Sturdy, insulated door with a integrated handle making it easy to open. Left hand hinged door. Self closing with magnetic closure.Automatic defrosting.
Versatile and maintenance-free.Good Overview of Proofing Process
The F200D Retarder Proofer has Double glazed window in the door and bright vertical LED-lights inside. Making it easy for the baker to overview the fermentation process on all the trays inside the cabinet.Adjustable legs
The F-Series F200D Retarder/Proofer is equipped with adjustable legs in stainless steel. Adjustable height: 150 - 180 mm.Saves time and labor
If the proofer is loaded the day, or more days in advance, the proofing process is complete by the time the workers arrive.Automatic proofing cycles
Memorize up to 4 automatic cycles – for cooling, conservation, awakening, resting and proofing. Ergonomically placed control panel for retarding and proofing cycles.Temperature range that meets most needs
Temperature range: -9º to +40º C / 15.8° - 104° F (retarding). Cooling compressor included. Refrigerant R290.Mountable tray tracks
Mountable tray tracks - room for 14 pairs. Easy to change tray tracks to suit the products for optimal utilization. Three tray sizes: 400 x 600, 450 x 600 and 460 x 610 mm.Alarm
Alarm for finished programQuick panel manual access.
Scan QR-code in the control panel for quick access to the panel manual in the smartphone.Specifications
Technical specifications
| Temperature range retarding | -9°C to + 40°C / 15.8°F – 104°F |
|---|---|
| Temperature range proofing | Ambient temperature to +40°C / 104°F |
| Refrigerant | R290 |
| Tray size [mm] | 400 x 600, 450 x 600, 460 x 610 |
| Distance between guides [mm] | 82 |
| Number of trays | up to 14 |
| Fuse (amp) | 10A |
| Power supply | 1.5 kW |
| Voltage | 230 V |
| Water Supply | G2/3 |
| Weight (kg) | 110 |
Measurement drawings
Click image to enlarge.
