Underbuilt Proofer
Save floor space! The Underbuilt Proofer fits perfectly with the deck ovens from Sveba Dahlen. It is installed under the deck oven sections, but can also be used separately as a stand-alone proofer. It is adaptable to most bakeries and all types of baking products.
Well insulated proofer chamber and equipped with sliding glass doors. Fitted with automatic water feed and humidity sensor. The underbuilt proofer has a modern, digital panel with timer and digital settings, to make every day proofing life easier!
- Available in two heights, 560 mm and 740 mm.
- Adapted for proofing at approximately 36 – 37°C / 96 – 99°F.
-
Easy to Move
Machine equipped with castors – makes it easy to move. -
Temperature & Humidity Control
Temperature and humidity are set seperately to ensure optimal control in the proofing process. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning.
Features

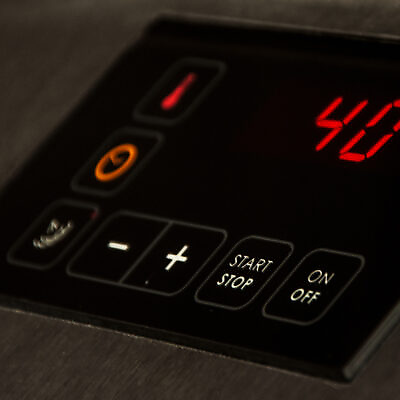

J3 Panel
For underbuilt proofers and F100 Climator unit. User-friendly control panel with glass screen. Easy to clean and to setup desired proofer settings.
Sliding glass doors
Sliding doors prevent slippery floor. (Not available on DJ1 – it has one door with hinges)
Well insulated chamber
Well insulated proofer chamber and stainless steel front. Maintains low temperature and is easy to keep clean.Stainless materials
Built completely in stainless materials to ensure a long service-life, simple cleaning, and low maintenance costs.Temperature and humidity sensor
The proofer is fitted with temperature and humidity sensor as standard. Accurate and stable control of proofing process.EHDS Steam generator outside
Equipped with EHDS - Effective Humidity Distributon System. Generates optimized distribution of the steam inside the proofer for the best proofing results. Fermentation without dehydrating the dough. Stable temperature in proofing cabinet gives optimal fermatation, so steam generator is located outside of the proofer cabinet.Good overview of the proofing process
Large window and vertical LED lighting inside. Providing a good overview of the proofing process on every tray inside.Automatic water feed
The proofer is fitted with automatic water feed as standard.Space for 10 baking trays
Easy to adjust the guides to fit different tray sizes without tools.Castors are standard
Specifications
|
DJ1
|
DJ2
|
DJ2E
|
DJ3
|
|
|---|---|---|---|---|
| For Deck Oven type | D1 | D2 | D2E | D3 |
| Fuse (amp) | 10A | 10A | 10A | 10A |
| Power supply | 1.8 kW | 1.8 kW | 1.8 kW | 1.8 kW |
| Capacity 4-tray version (H = 560 mm) | 1x4 trays | 2x4 trays | 2x4 trays | 3x4 trays |
| Capacity 6-tray version (H = 740 mm) | 1x6 trays | 2x6 trays | 2x6 trays | 3x6 trays |
Measurement drawings
Click image to enlarge.
