Cup Elevator CE100
CE100 Dough Cup Elevator is a robust step-by-step elevator for transporting dough pieces
The Glimek CE100 Dough Cup Elevator for bakeries is a robust step-by-step elevator in stainless steel for transporting dough pieces from Rounder into the Moulder type MO300.
The timing of each dough piece is controlled by a photocell and it has a capacity of up to 2000 pieces / hour. The weight range, subject to capacity and dough characteristics (when sold separately) are 100–1500 g.
The conveyor belt, 200 mm wide, has riveted cups on every 300 mm. The infeed hopper guides the dough piece into an empty cup.
Cup Elevator - CE100
Features
Robust Stainless Steel Execution
Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.
Easy to Clean
Product with a clean simple design, large smooth surfaces and/or rounded corners. Without frames or joints and/or removable interior parts. Hygenic materials such as stainless steel, which facilitates cleaning.
Adjustable support leg
Specifications
Technical Specifications
| *Subject to capacity and dough characteristics (when sold separately) | |
| Capacity range | Up to 2000 dough pcs/h |
| Weight range* | 100–1500 g |
| Fuse (amp) | 16A |
| Power supply | 0.25 kW |
| Mounting height | 2000–2040 mm |

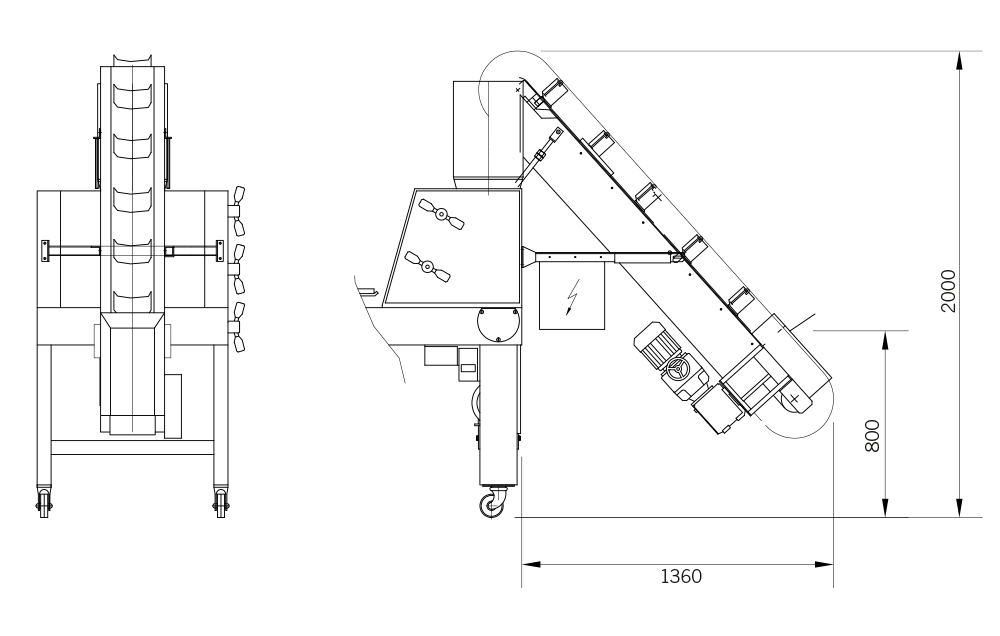

Measurement drawings
Click image to enlarge.
