Cup Elevator CE500
The CE500 is a heavy duty cup elevator for use in industrial bakeries
The Glimek CE500 Dough Cup Elevator, is a robust step-by-step vertical chain elevator for transporting the dough piece from the rounder up to the Intermediate Conveyor Proofer.
The cup elevator handles the dough pieces in a gentle way, and the timing of each dough piece is controlled by a photocell for consistent and continuous dough production.
- Capacity of up to 3600 pieces/hour.
- Stainless steel execution making it easy to clean.
Cup Elevator - CE500
-
High Capacity
High production speed. -
Photocell
Photocell-controlled feeding system for each dough piece. -
Flexible Design
Product with flexible design – can easily be adapted to customer needs. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning.
Features
High Capacity
Capacity up to 3600 pieces/hour. Weight range, 100–1800 g.
Distribution height
Distribution height above 3.897 mm (=33 cups), price on request. Additional distributing height as an option.
Cup elevator

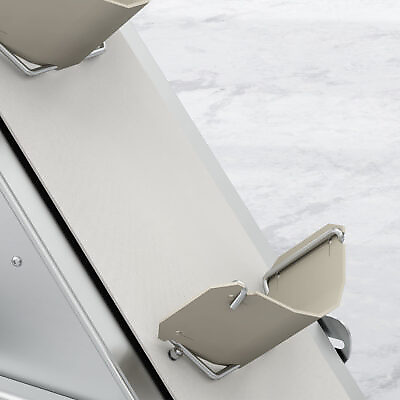

The infeed hopper guides the dough piece into an empty cup. Riveted cups on every 254 mm. Width of cups: 160 mm.Robust Stainless Steel Execution
Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.Easy to Clean
Product with a clean simple design, large smooth surfaces and/or rounded corners. Without frames or joints and/or removable interior parts. Hygenic materials such as stainless steel, which facilitates cleaning.Specifications
Technical specifications
| *Subject to capacity and dough characteristics | |
| Capacity | Up to 3600 dough pcs/h |
| Weight range* | 100–1800 g |
| Fuse (amp) | 16A |
| Power supply | 0.75 kW |

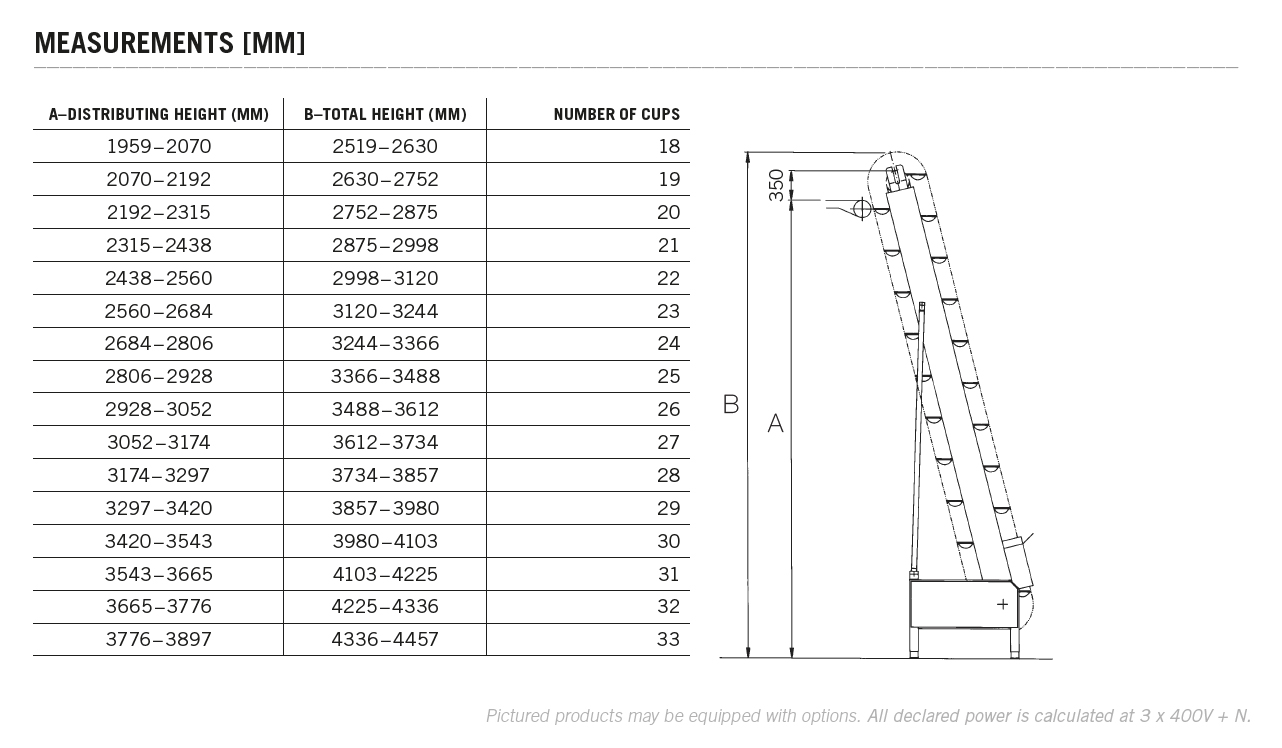

Measurement drawings
Click image to enlarge.
