Suction Dough Divider SD180
The Glimek SD180 suction dough divider, is a silent, automatic suction-fed dough divider for most types of dough. It has high weight accuracy and flexible weight range, which makes it suitable for both small bakeries and larger industrial bakeries.
It has a capacity from 750 to 1800 pieces per hour and hopper size of either 90L or 225L as standard.
- Standard measuring piston 120-1 600 g.
- 90 liter stainless steel hopper as standard (~ 63 kg dough).
- Capacity 750 – 1800 pieces/h as standard (lower capacity on request).
- Extremely silent 72 dB(A).
Dough Divider - SD180
Glimek Dough Divider SD180 with blue outfeed conveyor belt and blue non-stick coating in 90 l hopper
Glimek Dough Divider SD180 with blue non-stick coating in 90 l hopper, safety ring and pressure sensitive safety strip with auto stop function
-
Silent Operation
Machinery with very low noise level -
Flexible Dough Weight
Flexible by a wide dough weight range. -
Energy Efficient Machine
Effective insulation, functions and components which allows for low energy consumption and cost of usage. -
Easy to Move
Machine equipped with castors – makes it easy to move. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning.
Product Overview
A very useful and time saving machine for dough handling when making bread and pastries. SD180 has the highest security in its class with a auto stop safety edge function on the hopper and is very silent. It is also easy to clean and easy to operate, with thoughtful ergonomics for best user-friendliness. Increase the bakeries gentle dough handling productivity and make perfectly divided dough buns with SD180 Suction Dough Divider.
Why you should have a volumetric Dough Divider from Glimek
The dough dividers from Glimek are volumetric. This means that the dough is pulled down into the hopper by suction where it gets cut off at the correct volume of the dough depending on the setting.
With this technique, it is possible for the dough to have different fermentation times and still get perfect baking result since the pressure on the cut off dough is adapted after the fermentation process. This process gives an airier crumb and no, or very few, chemicals need to be added to the dough.
When baking artisan, and more sensitive bread, the volumetric method is preferred since the volume development is much better compared to other methods.
Features
High Safety Dough Divider
Highest safety with auto stop function. The safety ring makes it hard to reach down the hopper. The safety edge automatically stops the dough divider if it is exposed to pressure.
Flexible Dough Weight
The product is flexible by its wide dough weight range.

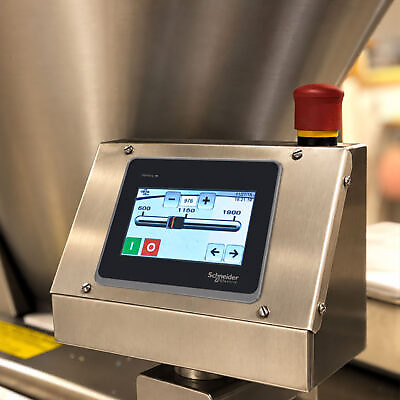

Glimek PLC SD180 Touch Panel
Available with Glimek Dough Divider SD180. The Glimek 4,3" Panel is a small touch panel with user-friendly interface, which makes it easy to make all necessary settings for the dough divider.Measures dough
Two chamber suction divider. Measures the dough instead of weighing – flexible regarding type of dough.No dough is left
Unique emptying function (hopper reaches down to the dough knife). No dough is left in the hopper. The hopper go all the way down to the knife.Wide weight range
Wide weight range, 3 versions, from 35 g to 2 300 g.Stainless steel execution
Dough knife in stainless steel. 90 liter stainless steel hopper as standard.Frequency converter
Variable speed with frequency converter.Oil reservoir
Oil reservoir 17 liter, easy to fill.Blue plastic
Blue plastic parts for better detection and food safety.Specifications
Technical Specifications
Capacity range 750-1800 dough pieces/h. Weight range, subject to capacity and dough characteristics.
|
SD180XS
|
SD180
|
SD180XL
|
|
|---|---|---|---|
| Weight range | 50–1000 g | 120–1600 g | 180–2300 g |
| Weight range with mini piston | 35–250 g | 35–250 g | |
| Fuse (amp) | 16A | 16A | 16A |
| Power supply | 1.1 kW | 1.1 kW | 1.1 kW |

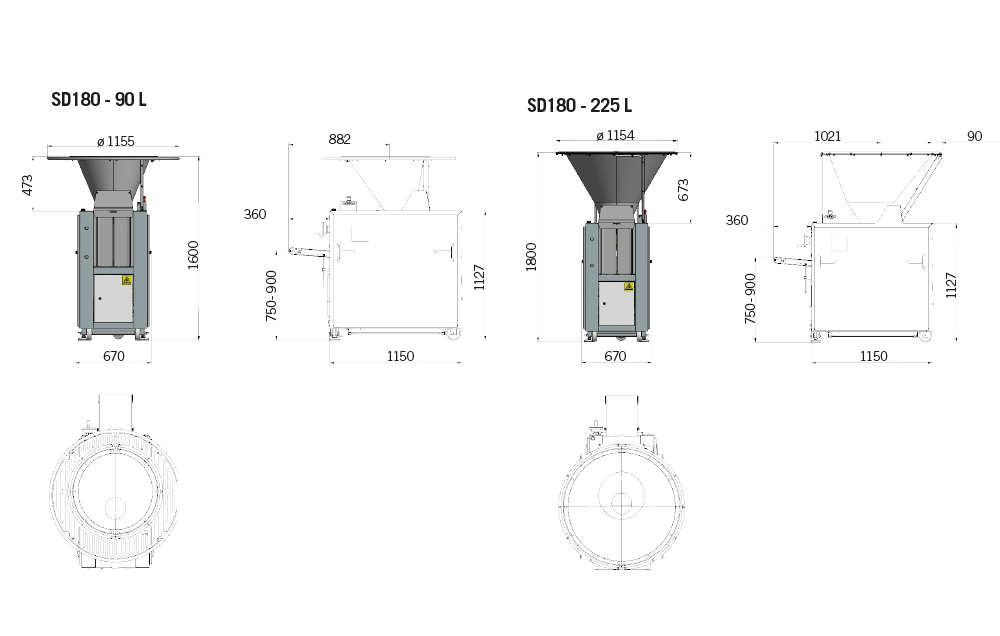

Measurement drawings
Click image to enlarge.
Options & Accessories
Documents
