Suction Dough Divider SD600
The Glimek SD600 is a stainless multi pocket suction dough divider in 3-pocket or 2/4-pocket execution with reliable dividing system for very high weight accuracy.
It has stepless adjustable dough pressure, which can be adjustable while running for very gentle handling of different types of dough. It has robust chassis, perfect for high industrial bakery production.
- 100 liter stainless steel hopper as standard (~70 kg dough).
- Compressed air is required.
Dough Divider - SD600
Dough divider SD600 with 100 liter hopper
-
Energy Efficient Machine
Effective insulation, functions and components which allows for low energy consumption and cost of usage. -
High Capacity
High production speed. -
High Dough Weight Accuracy
High dough weight accuracy, delivers desired weight for every dough piece. -
Flexible Dough Weight
Flexible by a wide dough weight range. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning.
Product Overview
Handles weight range between 150–1700 grams and has a capacity between 1000 and 6000 pieces per hour. The SD600 is a quality bread dough divider with high flexibility and high capacity, perfect for industrial and commercial bakeries, available with 100 liter or 225 liter hopper. Can be adjusted during operation.
Why you should have a volumetric Dough Divider from Glimek
The dough dividers from Glimek are volumetric. This means that the dough is pulled down into the hopper by suction where it gets cut off at the correct volume of the dough depending on the setting.
With this technique, it is possible for the dough to have different fermentation times and still get perfect baking result since the pressure on the cut off dough is adapted after the fermentation process. This process gives an airier crumb and no, or very few, chemicals need to be added to the dough.
When baking artisan, and more sensitive bread, the volumetric method is preferred since the volume development is much better compared to other methods.
Features
Flexible Dough Weight
The product is flexible by its wide dough weight range.

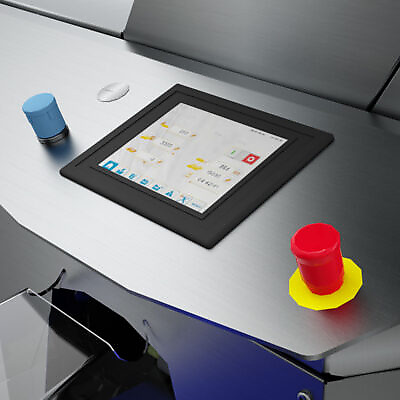

Glimek PLC SD600 Touch Panel
Available with Glimek Dough Divider SD600. A 7" touch panel with a user-friendly interface with many useful functions, which makes it very easy to use.
Robust, continuous production
The SD600 Dough Divider is a high quality and robust piece of machinery. Strong materials and smart lubrication systems to get long life out of the machine. Cost efficient and reliable continuous industrial production.High production speed
The SD600 produces up to 6000 dough pieces per hour. 2-pocket: 1000–3000 pcs/h. 3-pocket: 1500–4500 pcs/h. 4-pocket: 2000–6000 pcs/h.Flexible regarding type of dough
Equipped with a stepless adjustable pneumatic system (compressed air required, min. 6 bar) for very gentle handling of different types of dough. Can be adjusted during operation.Measures the dough
Measures the dough instead of weighing. Dough weight will be consistent even if the dough starts to ferment in the hopper.Wide weight range
Two versions; 150–1000 g as 3-pocket and 250–1700/100–700 g as 2/4-pocket. Reliable dividing system for very high weight accuracy.High Capacity
Capacity 1500-4500 pcs/h as 3-pocket, 2000-6000 pcs/h as 4-pocket and 1000-3000 pcs/h as 2-pocket (the measuring pistons are easily connected two and two).High attention to safety and hygiene
High attention on both safety and hygienic aspects in the development. Parts in blue for better detection and food safety.Stepless adjustments while running
Stepless adjustable dough pressure on pistons. Stepless adjustable pneumatic system (compressed air required, min 6 bar) for very gentle handling of different types of dough. Adjustable during operation.Patented gas spring system
Equipped with a patented gas spring system that allows relative motion between the motor and the dough feeding plunger, so that the pressure applied on the dough can be controlled. The working pressure on the gas spring can easily be adjusted.Smart monitored lubrication systems
Smart monitored lubrication systems to get long life out of the machine.Variable speed
Variable speed with frequency converter.Separate drive on outfeed belts
Quick release on outfeed conveyor
Specifications
Technical Specifications
|
3-pocket
|
2/4-pocket
|
|
|---|---|---|
| Capacity range | 1500–4500 pcs/h | 1000–3000/2000–6000 pcs/h |
| Weight range | 150–1000 g | 250–1700/100–700 g |
| Fuse (amp) | 25A | 25A |
| Power supply | 3.5 kW | 3.5 kW |
| Compressed air (Required) | 6 bar | 6 bar |
