Deck Oven D-Series Double Depth
A reliable deck oven that works for both confectionary and bakeries. The Double Depth D-Series is what the name says – a D-Series special edition, with double depth for extra capacity.
Double depth is available in one width and is also adaptable to all types of bakeries and most baking products.
Bakery deck oven with extra depth for higher capacity
-
Heating System
High-efficiency heating system -
Energy Efficient Machine
Effective insulation, functions and components which allows for low energy consumption and cost of usage. -
Low Maintenance Costs
High quality robust parts. -
Modular Design
Separable and/or expandable design.
Product Overview
The Double Depth deck oven: a special edition with double depth for extra capacity
- It consists of robust, reliable and energy-efficient ovens with double temperature sensors to ensure an even heat distribution throughout the oven interior, which gives excellent baking results.
- It comes with double steam generators and and high oven chambers.
- It is well insulated, which leads to a good working environment while also using less energy.
The heating elements are placed inside the all-welded oven and regulate the top, bottom and front heating evenly. The oven is also equipped with a power guard that monitors and controls the power output. The deck oven is equipped with radiation cover and turbo function, which means that it quickly reaches the desired baking temperature.
The few moving parts of the oven along with its robust handle and seals that can withstand high temperatures makes it easy to clean and maintain. The sections come apart for easier assembly in small spaces. Equipped with a stone sole and steam, this is an incredibly flexible oven that offers endless possibilities in professional baking of sourdough bread, bread and more delicate baked goods for a reasonable price.
Features
Key features
- Crown height 220 mm.
- Max baking temperature 330°C / 626°F.
Individually controlled oven sections
Each oven section can be individually controlled with separate settings of the top, bottom and front heat. Full control in the baking process.
SD Amigo Deck Oven
User-friendly control panel, designed to meet the essential requirements of bakers. Provides all the necessary tools for the daily baking needs of professionals.

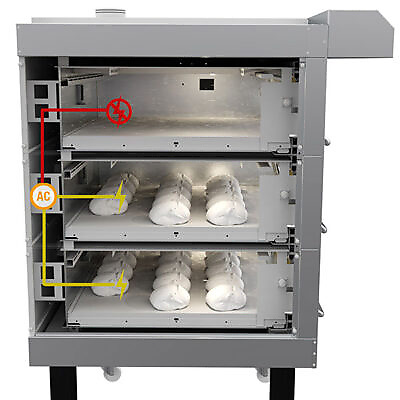

AC Guard Smart Power Connection
AC Guard distributes the power between the decks, making sure that the deck that needs most of the power get the power it needs without the need to install higher amps in the bakery.Heating Elements
Our own high quality, specially designed, heating elements which always is adapted to the customers production in sense of effect and quantity. By always adapt the elements to each case, the baking results always reaches highest quality.Precision-built oven doors
Gives the door a smooth action and ensures convenient and safe handling.Effective working halogen lighting
Provides whiter and more intensive working light than standard bulbs.Double built-in steam generators
Aluminium legs with castors
Including aluminium legs with castors. Robust, adjustable oven feets instead of castors on model D42ED.Cement sole
Specifications
Technical specifications
| Interior deck size | 1265 x 1660 mm |
|---|---|
| Power per deck incl. steam generator | 20.8 kW |
| 1-deck oven / Fuse (amp) | D12ED / 40 A |
| 2-deck oven / Fuse (amp) | D22ED / 63 A |
| 3-deck oven / Fuse (amp) | D32ED / 100 A |
| 4-deck oven / Fuse (amp) | D42ED / 125 A |
Measurement drawings
Click image to enlarge.
Options & Accessories
-
SD Touch II Deck Oven
It's easier than ever to control your oven and its settings. Get full control of the entire baking process and bake the best bread you have ever made! Record baking routines, load recipes and start your oven with the week schedule. It is easy to bake with the SD Touch II panel! See option -
Stone Hearth
Provides a stone oven baked bread with excellent results! You can also supplement the oven with a steam generator (option) for the best variety of bakery products.
Sveba Dahlen
Oven Loader Liftmatic G
Oven Loader Liftmatic-G for fast and efficient loading of deck ovens in the D-Series and D-Series extra-deep ovens.
With an Oven Loader, you get an ergonomic and time-saving solution that can be customized to fit your bakery, ventilation hoods, and more. You can load your deck oven quickly and easily, reducing the amount of time the oven door stays open. This helps minimize heat loss from the oven.
Accessories
Manual Oven Loader for Deck Ovens
The Manual Setting Device / loader offers fast and efficient loading of the oven. Simple and perfect placement of the bread inside the oven everytime!
Easy and ergonomic to use.
The belt is detachable.
The Manual Setting Device is available in three different sizes which are adapted to the D-Series Deck Ovens.
Accessories
Water Filter
The filter cartridges, specially developed for provers and ovens, reduce carbonate hardness in drinking water and, as a result, prevent limescale formation in equipment.
In addition, the filter medium retains metal ions such as lead or copper and reduces substances, for example chlorine, that can negatively affect taste and aroma. This, in turn, can contribute to a cleaner, more balanced flavour in the finished baked product.
The food safety of this professional water filter product is tested and monitored by independent institutes.
