Tunnel Pizza Oven TP Infinity
The Sveba Dahlen electric Tunnel Pizza Oven TP Infinity is versatile and quick for large volumes. It is truly a flexible commercial pizza oven suitable for a restaurant demanding for a continuous pizza production with maintained working environment – also a baking oven for larger production of pies and pita bread.
The oven is easily adapted for various capacity requirements, which means that you adapt the tunnel pizza oven to the demand in the serving. Also possible to use as a cooking oven; cook hamburgers, fish and hot dogs as well as other dishes that require fast delivery!
TP Infinity TP41 4 deck tunnel pizza oven

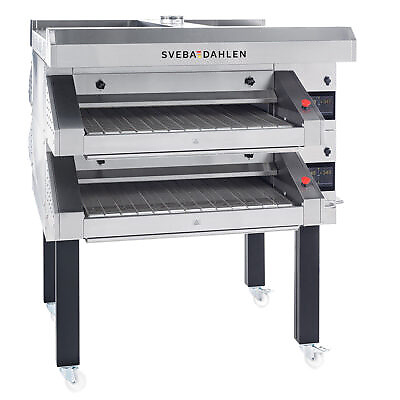

Tunnel Pizza Oven - TP21
TP Infinity TP41 flexible 4 deck tunnel pizza oven
Compact Tunnel Pizza Oven TP10
TP21 Control Panel
TP21 Control Panel
TP21 Control Panel
Pizza
Pizza
Freshly Baked Pizza
Salmon
-

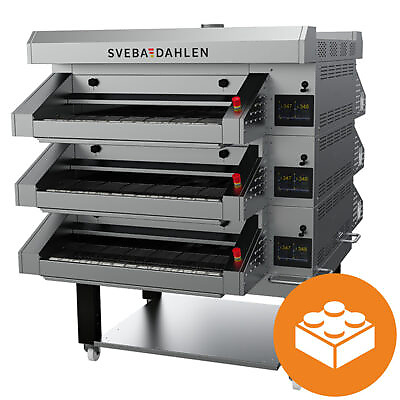

Modular Design
Separable and/or expandable design. -
Flexible Production
Flexible product for continiuous production, that can produce a wide range of end products. -
Silent Operation
Machinery with very low noise level -
Easy to Move
Machine equipped with castors – makes it easy to move.
Product Overview
Pizza, bread or cooking oven with silent operation
This pizza oven is also ideal for baking products such as pies and pita bread, as well as for making dishes such as hamburgers, fish and hot dogs. Baking time between 2–15 minutes. One can say it is a cooking oven! The oven is extremely energy efficient, very quiet (one of the most quiet tunnel ovens on the market), compact and well insulated, providing high capacity in a small space.
With temperatures up to 400°C / 752°F, stepless setting on touch screen of baking times, and up to four individual sections vertically the tunnel pizza oven makes it possible to get high capacity both as regards the numbers as well as the variation of the products which can be baked.
The tunnel pizza oven design is optimized to offer great flexibility and efficient pizza baking also having energy efficiency in mind. The energy-saving mode can be activated when the oven is not in use. Combined with the rapid heating it reaches the right temperature quickly in time for work.
The modular design makes it possible to extend the oven when the business i growing. It can be extended up to three decks which means that you as a customer do not have to buy the largest model right now if you are unsure of the volume in your restaurant at the beginning.
Features
Oven chamber with two different zones
The temperatures of the top and bottom heating are controlled separately for each zone, resulting in even baking. Panel with large and clear symbols provides good control and makes it easy to set the right time and temp in each zone.
Flexible production
Bake all from pizza to pies and pita bread, as well as for making dishes such as hamburgers, fish and hot dogs.
Tunnel Pizza Oven TP Panel
Available with Tunnel Pizza Oven TP. The 7" Digital Tunnel Pizza Oven Panel is a touch panel with a user-friendly interface, which makes it very easy to use.Automatic Turbo Start
Automatically heats up the oven quickly to the set temperature. Demands no manual setup from the user.Stepless adjustment of heating and time
Stepless adjustment of top and bottom heating, and stepless adjustment of baking time between 2 and 15 minutes. Easy to understand and use, giving full control over the baking process.Consistent temperature
Stainless steel exterior and well-insulated oven chamber. Keeps the heat inside and maintains a lower temperature on the outside.Fast baking time, high baking temperature
Baking time 2–15 minutes. Max baking temperature 400°C / 752°F.Energy-saving mode
Can be activated when the oven is not in use, saving money and reducing environmental impact.Steam canopy
Steam canopy at infeed and outfeed (not on TP10, TP20). Creates a good work environment.Aluminum legs with wheels
Aluminum legs (adjustable for tabletop use of TP10,TP20) with wheels. Make it easier to move the oven.Additional bar at the end of slide grate
Removable infeed and outfeed tray
Stainless steel mesh conveyor
Specifications
TP10
|
TP20
|
TP11
|
TP21
|
TP31
|
TP41
|
TP12
|
TP22
|
TP32
|
|
|---|---|---|---|---|---|---|---|---|---|
| Conveyor belt width | 381 mm | 381 mm | 585 mm | 585 mm | 585 mm | 585 mm | 900 mm | 900 mm | 900 mm |
| Number of decks | 1 | 2 | 1 | 2 | 3 | 4 | 1 | 2 | 3 |
| Recommended number of pizza trays | 4 pcs | 8 pcs | 8 pcs | 16 pcs | 24 pcs | 32 pcs | 12 pcs | 24 pcs | 36 pcs |
| Fuse | 25A | 32A | 25A | 40A | 63A | 2 x 40A | 32A | 63A | 80A |
| Power | 9.5 kW | 18.5 kW | 12 kW | 24 kW | 36 kW | 2 x 24 kW | 18 kW | 36 kW | 54 kW |
| Extra deck | Available | Available | Available | Available | Available | Not available | Available | Available | Available |
| Width with spacer* | 730 mm | 730 mm | 1137 mm | 1137 mm | 1137 mm | 1137 mm | 1452 mm | 1452 mm | 1452 mm |
| Spacer width | - | - | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Depth | 1550 mm | 1550 mm | 1850 mm | 1850 mm | 1850 mm | 1850 mm | 1850 mm | 1850 mm | 1850 mm |
| Height with legs | 599 - 637 mm | 939 - 977 mm | 1350 mm | 1690 mm | 1830 mm | 2109 mm | 1350 mm | 1690 mm | 1830 mm |
| Leg height | 82 - 120 mm (adjustable) | 82 - 120 mm (adjustable) | 735 mm | 735 mm | 535 mm | 434 mm | 735 mm | 735 mm | 535 mm |
| Infeed and outfeed plate** | max 390 mm | max 390 mm | max 390 mm | max 390 mm | max 390 mm | max 390 mm | max 390 mm | max 390 mm | max 390 mm |
| Weight | 160 kg | 275 kg | 240 kg | 380 kg | 510 kg | 650 kg | 300 kg | 475 kg | 650 kg |
** Infeed and outfeed plates are detachable. All models can be equipped with both.

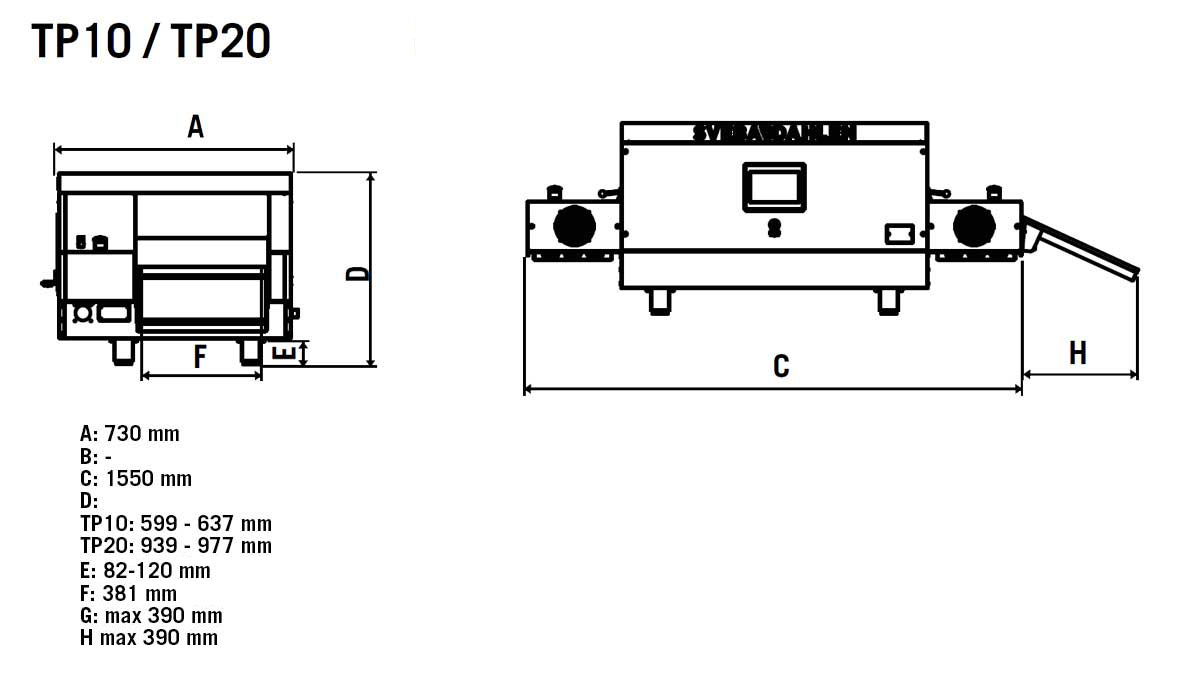

Measurement drawings
Click image to enlarge.
Options & Accessories
Videos
Documents
