INTERMEDIATE CONVEYOR PROOFER - ICP
The Glimek ICP is a conveyor proofer for all types of bakeries. It can be made in 1-4 decks as standard and custom lengths and with capacity up to 3600 pieces/hour. The ICP has a smart space saving system and can be mounted from ceiling. A perfect customer-adapted system, which allows you to adapt the dough resting time and production capacity to suit the bakeries needs, either if it is a small or large bakery.
Easy to Clean
Flexible Design
Features
Capacity up to 3600 pcs/hour.
Removable windows on both sides.
Belt width 350 mm.
Weight range 100 - 2300 grams.
Made of strong special aluminum profiles.
Drum motors with frequency controlled drive as standard.
Standard length up to 12m on each deck.
Outlet sliding plate - fixed (option).
Outlet sliding plate - turnable 1500 mm or 2500 mm (option).
Separate stands (option).
Ceiling suspensions (option).
Technical drawing needed.
Key features
Space saving
Space saving solution, can be mounted from ceiling. Saves floor space in the bakery.
Customer adapted
The ICP Intermediate conveyor proofer has a very flexible design can easily be adapted to customer needs. Standard length up to 12m on each deck and available with 1 to 4 decks.
Specifications
Technical Specifications
Models:
ICP100 - 1 deck x 5 m.
ICP200 - 2 deck x 5 m.
ICP300 - 3 deck x 5 m.
ICP400 - 4 deck x 5 m.
ICP without control cabinet.
ICP with control cabinet.
Additional price per meter (proofing length).
Technical
Capacity range: Up to 3600 dough-pcs/h. / 60 dough pieces per minute.
Weight range, subject to capacity and dough characteristics: 100 - 1500 grams.
Fuse (amp): 16A
Power supply: 0.11 kW per deck as standard

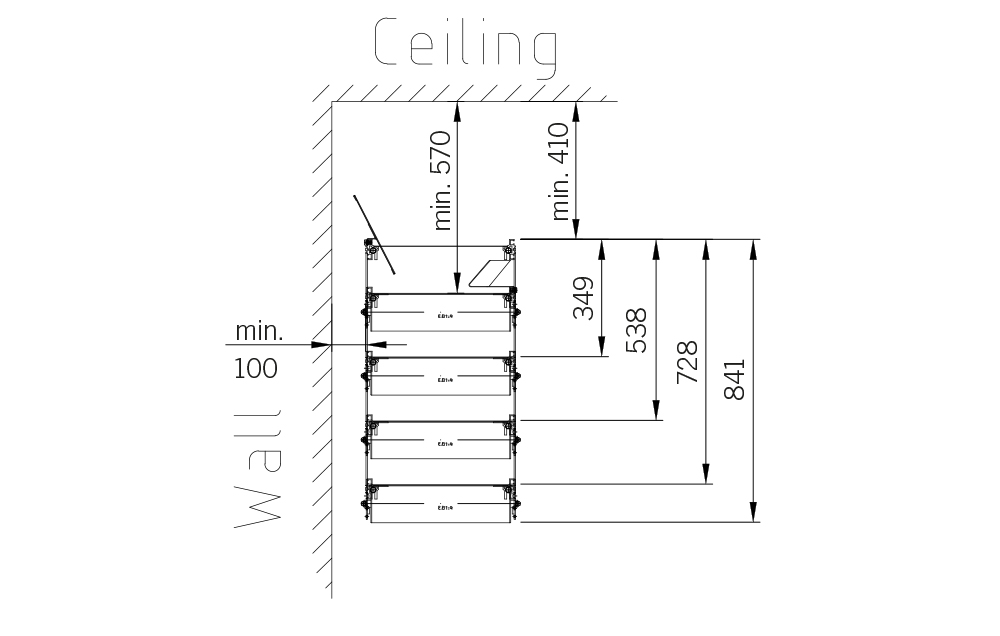

Measurements
