Bread Line 180 Direct
Produce bread without need for an intermediate proofing time with Bread Line 180 Direct
The Glimek Bread Line 180 Direct is specially made for producing bread without need for an intermediate proofing time. It’s a labour saving, time saving and space saving breadline for a flexible and consistent production in the bakery.
Bread Line 180 Direct is a very compact breadline with a high capacity – up to 1800 pieces/hour. It’s highly flexible and offers a flexible consistent production with a weight range of 120–1600 g.
Bread Line 180 Direct
Dough Divider - SD180
Conical Rounder - CR400
Cup Elevator - CE100
Moulder - MO300
-
Silent Operation
Machinery with very low noise level -
High Capacity
High production speed. -
Energy Efficient Machine
Effective insulation, functions and components which allows for low energy consumption and cost of usage. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
Easy to Move
Machine equipped with castors – makes it easy to move. -
Flexible Production
Flexible product for continiuous production, that can produce a wide range of end products.
Product Overview
This bread line is perfect for industrial baking and commercial bakeries with higher volumes. See components setup example below. All machines in the dough make-up line can be bought separately.
Bakery machines set-up example
- SD180 Dough Divider, Volumetric dough divider, weight range 120-1600 gr, variable speed with frequency converter 750-1800 pcs/h, 90 liter stainless steel hopper, non-stick coated.
- CR400 Conical Rounder, with centrally adjustable non-stick coated tracks, infeed at 6h, outfeed at 12h, oufeed chute and mechanical flour duster.
- CE100 Cup Elevator, mounted on moulder MO300, photocell controlled, working step by step to link up cone rounder with Moulder, including electrical cabinet mounted on elevator. Capacity 50-1000 gr.
- MO300 Moulder, with centrally adjustable infeed in hopper, two pair of rollers, pressure board 650×1100 mm, collection tray. Flexible production with Moulder MO300 – manages many different doughs with a wide weight range: 30 – 1800 g. Can produce a wide range of end products.
Features
High Dough Weight Accuracy
Dough handling equipment with high dough weight accuracy – delivers desired weight for every dough piece.
Flour Dusters
Solutions for flour dusting all through the baking process. Easy to adjust and perfect amount of flour in each dusting.
Non Stick Coating Cone
Non-stick coating on cone and tracks for ultimate rounding. Dough does not stick as well which makes it easy to clean.Optimized Grip
Cone with grooves for optimized dough grip.Photocell
Product with a photocell-controlled feeding system that sets the timing of each dough piece.Robust Stainless Steel Execution
Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.Make bread without proofing time
Specially made for producing breads without an intermediate proofing time.Glimek PLC SD180 Touch Panel
Available with Glimek Dough Divider SD180. The Glimek 4,3" Panel is a small touch panel with user-friendly interface, which makes it easy to make all necessary settings for the dough divider. Learn more about this featureHigh capacity
Very compact bread line with a high capacity of 1800 pcs/h.Flexible breadline
Flexible breadline which handles a variety of doughs.Centrally adjustable infeed flaps
Centrally adjustable infeed flaps with size indicator, enables correct positioning of the dough pieces (Moulder MO300).Parallel adjustable side guides
Moulder MO300 has parallel adjustable side guides in stainless steel for more efficient positioning of the dough pieces. 20 mm in food approved plastic or 10 mm with non-stick coating.Moulder collection tray
Collection tray for Moulder MO300 and MO881 with two positions which catches the dough pieces after the moulding. Enables straight line outfeed.Specifications
Technical Specifications
| Capacity range | Up to 1800 pcs/h. |
| Weight range | 120–1600 g |
| Fuse (amp) | 18A |
| Power supply (component example above) | 3.95 kW |

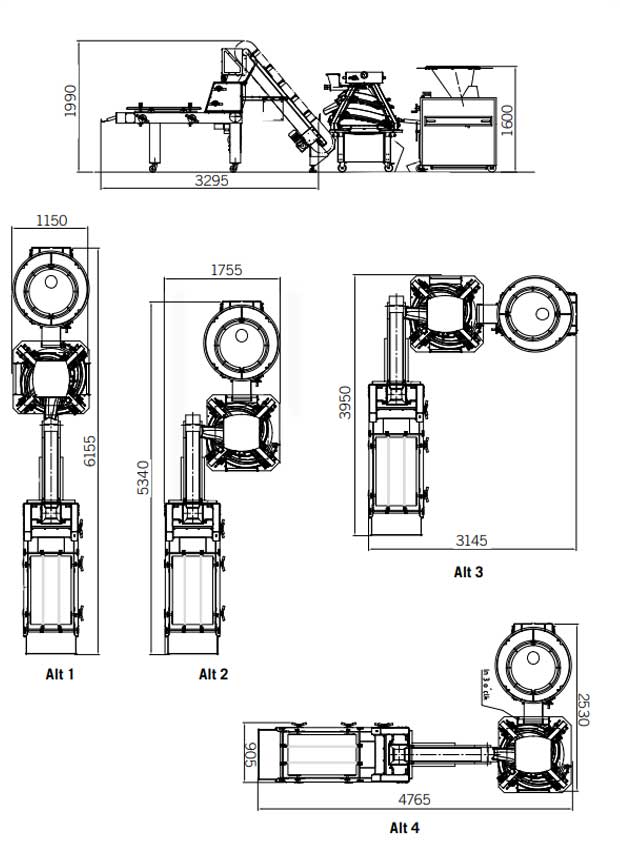

Measurement drawings
Click image to enlarge.
Documents
