Bread Line 300
Heavy-duty industrial bakery machinery with high quality components
The Glimek heavy-duty industrial bread line includes robust machines which are designed for consistent and continual production and made of high quality materials that ensures excellent dough and baking results.
Depending on needs, it is possible to choose between the SD300 or SD600 volumetric suction dough divider with stainless steel frame. This powerful dough line has a capacity up to 3000 pieces/hour, a weight range between 100 and 1500 grams and an adaptable proofing time.
Bread Line 300
Dough Divider - SD300
Dough Divider - SD600
Conical Rounder - CR400
Intermediate Pocket Proofer - IPP10/48
Moulder - MO881
-
Silent Operation
Machinery with very low noise level -
Energy Efficient Machine
Effective insulation, functions and components which allows for low energy consumption and cost of usage. -
Easy to Clean
Product with a clean design, removable parts and hygenic materials which facilitates cleaning. -
High Capacity
High production speed.
Product Overview
This labor saving and heavy-duty bakery machinery with high quality components, carefully handles the dough for perfect dough and baking results! See components set-up example below. All bakery machines can be bought individually.
Dough handling equipment set-up example
- SD300: Capacity 1500-3000 pcs/h and weight range 150-1150 g as 2-pocket dough divider, capacity 750–1500 pcs/h and weight range 250-2300 g as 1-pocket. Variable speed with frequency converter, PLC Touch screen panel, 90 liter stainless steel hopper, non-stick coated.
- SD600: Stainless steel multi pocket dough divider, weight range 150-1000 g as 3-pocket and 250-1700/100-700 g as 2/4 pocket. Variable speed with frequency converter, PLC Touch screen panel, 100 liter stainless steel hopper, non-stick coated.
- CR400 with centrally adjustable non-stick coated tracks, infeed at 6h, outfeed at 12h, outfeed chute and mechanical flour duster.
- IPP10/48 with dual infeed conveyor L = 750 mm, centrally placed, photocell controlled, non-stick coated infeed V-belt conveyors. Flap system guides the dough pieces after the rounder. Compressed air is required, 6 bar. Variable speed on the prover. Electric control panel under projecting overhang, electric sockets for divider, rounder and moulder, outfeed cross conveyor. Proving time 9,3 min at 3000 pcs/h.
- MO881: Heavy duty moulder with centrally adjustable infeed in the hopper, three pair of rollers, timing belt drive, two separate pressure boards and collection tray. The MO881 Moulder is very flexible and available with a wide range of options to meet cutomer demands. Manages many different doughs and can produce a wide range of end products (form and weight).
Features
Flexible regarding type of dough
Equipped with a stepless adjustable pneumatic system (compressed air required, min. 6 bar) for very gentle handling of different types of dough. Can be adjusted during operation.
High Dough Weight Accuracy
Dough handling equipment with high dough weight accuracy – delivers desired weight for every dough piece.
High Safety Dough Divider
Highest safety with auto stop function. The safety ring makes it hard to reach down the hopper. The safety edge automatically stops the dough divider if it is exposed to pressure.Optimized Grip
Cone with grooves for optimized dough grip.Non Stick Coating Cone
Non-stick coating on cone and tracks for ultimate rounding. Dough does not stick as well which makes it easy to clean.Continuous production
The SD600 Dough Divider is a high quality and robust piece of machinery. Strong materials and smart lubrication systems to get long life out of the machine.Seamless products
Seamless products - breads and baguettes made without seams.Modular Intermediate Pocket Proofer
Modular and flexible design. Can be expanded. Up to 1128 effective pockets as standard. Larger proofers on request. Flexible choice of infeed position, customer adapted for optimized layout.UV Lighting
UV-lighting inside the IPP Intermediate pocket proofer with on / off function. Helps to eliminate and prevent microorganisms and bacteria on the swings inside the proofer.Robust Moulder available in Stainless Steel
Robust high quality moulder for continuous industrial production. Available with stainless steel frame.Glimek PLC SD300 Touch Panel
Available with Glimek Dough Divider SD300. A 7" touch panel with a user-friendly interface for speed and weight control (and more). Learn more about this featureGlimek PLC SD600 Touch Panel
Available with Glimek Dough Divider SD600. A 7" touch panel with a user-friendly interface with many useful functions, which makes it very easy to use. Learn more about this featureFlour Dusters
Solutions for flour dusting all through the baking process. Easy to adjust and perfect amount of flour in each dusting. Learn more about this featureCommon Emergency Stop
Stop all bread line components with any emergency stop in the bread line.User Friendly Control Panel for Intermediate Pocket Proofer
User-friendly, movable control panel, easy to learn and to make adjustments.Specifications
Technical Specifications
|
SD300 + CR400 + IPP10/48 + MO881
Basic execution
|
SD600 + CR400 + IPP10/48 + MO881
Basic execution
|
|
|---|---|---|
| Fuse (amp)* | 16–25A | 16–25A |
| Power supply | 6.63 kW | 8.63 kW |
| Compressed air | 6 bar | 6 bar |
| Moulder execution | Basic / Stainless steel | Basic / Stainless steel |
Measurement drawings
Click image to enlarge.
Videos
Documents
Discover more of our Bread Lines
-
Sveba DahlenIndirect Gas Heated Tunnel Oven
The Sveba Dahlen indirect fired gas tunnel oven offers a unique flexibility and capability for producing a wide variety of products. The tunnel oven is built on a concept where each zone has two Weishaupt™ gas burners heating the air and distributing it to the top and the bottom of the oven through heat exchangers. -
GlimekDough Piece Separator DPS
The Glimek Dough Piece Separator DPS separates dough pieces into two rows, normally after the conical rounder, enabling intermediate proofing and moulding at higher capacities. Required for increased Bread Line capacity, up to 4500 pcs/hour. Hygienic belt and materials. Easy to install. -
Glimek
Intermediate Pocket Proofer IPP 1272
One of the most flexible pocket proofers on the market. For 6, 8, 10 or 12 pockets. Modulated for easy adaption in height and depth, available in standard models from 132 up to 1128 effective pockets. Features & Specifications Solid construction in stainless steel materials. Easy to keep clean. Flexible layout – choice of infeed position. Modular layout – enlarge the IPP if longer resting time is needed. Weight range 100–1500 g. Capacity 4500 pieces/hour. -
Glimek
Bread Line 450
The Glimek Bread Line 450 includes robust dough handling machines designed for consistent and continuous production around the clock. The Glimek baking machines are made of high quality materials, mostly stainless steel, that ensures excellent dough results and in the end best baking results. This powerful industrial bread line has a capacity of up to 4500 pieces/hour, a dough weight range between 100 and 1500 grams and an adaptable proofing time (proofing time depending on capacity pcs/h and size of Intermediate Pocket Proofer – IPP). -
Sveba DahlenElectric Heated Tunnel Oven
Sveba Dahlen delivers electric tunnel ovens to customers all around the world. Each oven is based on a basic concept and then adapted to the customer’s wishes and requirements. The ovens can be equipped with many types of belts, such as different kinds of wire mesh belts and solid steel belts. Electric heated ovens are produced in belt widths up to 4,2 m. They are produced in two different basic models, depending on the baking temperature to be used. “Normal temperature ovens” of up to 350°C and “high temperature ovens” of up to 500°C are available. -
Glimek
Cup Elevator CE500
The Glimek CE500 Dough Cup Elevator, is a robust step-by-step vertical chain elevator for transporting the dough piece from the rounder up to the Intermediate Conveyor Proofer. The cup elevator handles the dough pieces in a gentle way, and the timing of each dough piece is controlled by a photocell for consistent and continuous dough production. Capacity of up to 3600 pieces/hour. Stainless steel execution making it easy to clean. -
Glimek
Bread Line 180 Direct
The Glimek Bread Line 180 Direct is specially made for producing bread without need for an intermediate proofing time. It's a labour saving, time saving and space saving breadline for a flexible and consistent production in the bakery. Bread Line 180 Direct is a very compact breadline with a high capacity – up to 1800 pieces/hour. It's highly flexible and offers a flexible consistent production with a weight range of 120–1600 g. -
Sveba Dahlen

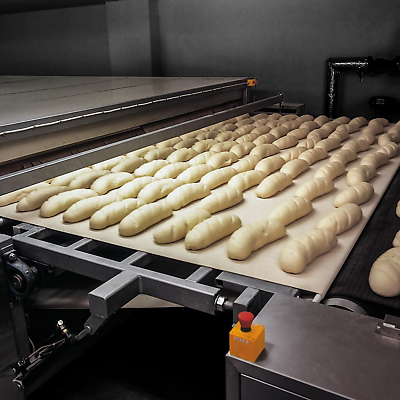

Industrial Belt Proofer
