Rotating Rack Oven C-Series

Discover the C-Series, a roll-in rotating rack oven with a compact design and high capacity made in Sweden by Sveba Dahlen. Our C-Series rack ovens are not only quiet and energy-efficient but also designed to fit into small spaces. Perfect for smaller to medium sized bakeries!

  • Sveba Connect Ready! Prepared to be connected to the Cloud Service.
  • Max baking temperature 300°C.
Find your distributor
Rotating rack oven with compact design for bakeries C-Series Sveba Dahlen
Roll-in rack oven for flexible baking, with or without canopy
buy baking oven, bakery rack oven c-series sveba dahlen
Rack Oven with design which facilitates cleaning
Rack Oven C-Series with split, removable ramp Sveba Dahlen
Rack Oven C-Series with split, removable ramp

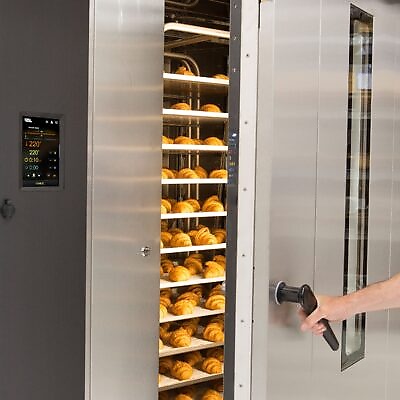

Bakery rack oven with cool handle during baking proccess
Bakery oven with cool, ergonomic handle
Bakery rack oven for small spaces with effectively insulated door
Bakery rack oven with effectively insulated door
Rack oven with smart solutions multi holder C-Series Sveba Dahlen
Smart utility holder on front panel for tools, gloves, knives and more .
Rack oven with drain connection for condensation water Sveba Dahlen
Drain for condensation water
Rack oven with user-friendly control panel C-Series Sveba Dahlen
SD Touch II panel with user-friendly interface, swipe function, energy efficient and smart functions for the bakery

    • Heating System

      High-efficiency heating system

    • Air Flow

      Optimized Air Flow treat the dough with even flow and with most care when baking, provides quick, even and economical baking.

    • Steam System

      Optimized, high quality and high capacity steam system. For a smooth, crisp crust or increased volume.

    • Rotation

      A rotating rack gives better and more even heat transfer to the products being baked. Allows for quick and more economical baking.

    • Energy Efficient Machine

      Effective insulation, functions and components which allows for low energy consumption and cost of usage.

    • Silent Operation

      Machinery with very low noise level

    Product Overview

    Available in four sizes, these rack ovens can be powered by electricity, oil, or gas, providing a versatile solution for various bakery needs. The smart digital control panel and well-conceived design ensure user-friendliness in a wide range of bakery environments.

    Featuring automatic rotation stop for easy unloading and spring-loaded door hinges that keep the door open during loading and unloading, the C-Series rack oven streamlines your baking process. The oven’s ability to bake evenly across the entire rack guarantees a perfect baking result every time.

    Elevate your bakery’s efficiency and quality with the Sveba Dahlen C-Series rack oven – the ideal choice for compact, high capacity baking solutions!

    Features

    IBS Increased Baking Surface

    Our patented system for alternate rack rotation inside the oven provides faster, more even, and more energy-efficient baking. The system makes sure that the baked goods receive equal heat on all sides.

    Counterflow

    The heat exchanging process in the oil- and gas fueled ovens is based on the counter flow principle. This results in high efficiency and reduced heating costs.

    Cascad Steam System

    Cascad is a patented steam system with a very high capacity. Makes continuous baking without interruption possible.

    Well insulated, right-hand hinged door

    The right-hand hinged door is well insulated (20 mm thicker insulation) with an ergonomic handle, large double glazed window and door stop. Easy to open and gives a good view of the oven interior.

    Split, removable ramp

    The C-Series ramp is wide and with a low angle for effortless loading and unloading of trolleys. The ramp is also split and simple to remove for cleaning in front of the oven.

    SD Touch II Rack Oven

    The SD Touch II panel is standard on all our rack ovens. It is very powerful and comes with smart features that make everyday life easier for bakers worldwide. Learn more about this feature

    Spring Loaded Door Hinge

    The spring loaded door hinge keeps the door open while loading/unloading the oven.

    Smart Utility Holder

    Smart and easy accessible utility holder for your tools. Magnet for the holding, for example, the knife in place. Compartment for documents, gloves and more.

    Robust Stainless Steel Execution

    Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.

    Automatic Rotation Stop

    The rack rotates to the unloading position at the end of the bake, when the door handle is released/lifted (not opening the door).

    Smart integrated heating package

    Heating package integrated into the top section – requires a smaller floor space. Large, efficient heating package – flexible production. Quick heating and efficient use of heat. Efficient insulation retains the heat inside the oven.

    Efficient heat exchange

    Efficient heat exchange in oil and gas versions. High efficiency, low heating cost.

    Suspension hook

    Suspension hook is standard. Max weight 150 kg on C100, 200 kg C200. Makes cleaning easier.

    Separable, replaceable drainage box

    Separable and replaceable drainage box. Makes it possible to change the drainage from the front to the back of the oven.

    Specifications

    C100
    C101
    C102
    C150
    C151
    C152
    C200
    C201
    C202
    C250
    C251
    C252
    Heating Electric Oil Gas Electric Oil Gas Electric Oil Gas Electric Oil Gas
    Maximum baking temperature 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C
    Max tray size per rack 457 x 762 mm 457 x 762 mm 457 x 762 mm 457 x 762 mm 457 x 762 mm 457 x 762 mm 600 x 800 mm 600 x 800 mm 600 x 800 mm 600 x 800 mm 600 x 800 mm 600 x 800 mm
    Max rack diagonal 935 mm 935 mm 935 mm 935 mm 935 mm 935 mm 1050 mm 1050 mm 1050 mm 1050 mm 1050 mm 1050 mm
    Max rack height platform 1585 mm 1585 mm 1585 mm 1815 mm 1815 mm 1815 mm 1585 mm 1585 mm 1585 mm 1815 mm 1815 mm 1815 mm
    Max rack height hook 1640 mm 1640 mm 1640 mm 1880 mm 1880 mm 1880 mm 1640 mm 1640 mm 1640 mm 1880 mm 1880 mm 1880 mm
    External dimensions W x H x D 1335 x 2292 x 1355 mm 1335 x 2382 x 1355 mm 1335 x 2382 x 1355 mm 1335 x 2524 x 1355 mm 1335 x 2614 x 1355 mm 1335 x 2614 x 1355 mm 1450 x 2294 x 1355 mm 1450 x 2382 x 1355 mm 1450 x 2382 x 1355 mm 1450 x 2524 x 1355 mm 1450 x 2614 x 1355 mm 1450 x 2614 x 1355 mm
    Depth with canopy 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm 2208 mm
    External height with insulated floor 2327 mm 2417 mm 2417 mm 2559 mm 2649 mm 2649 mm 2329 mm 2417 mm 2417 mm 2559 mm 2649 mm 2649 mm
    External height with rack lift 2407 mm 2497 mm 2497 mm 2639 mm 2729 mm 2729 mm 2409 mm 2497 mm 2497 mm 2639 mm 2729 mm 2729 mm
    Internal dimensions W x H x D 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 813 x 1944 x 992.5 mm 813 x 1944 x 992.5 mm 813 x 1944 x 992.5 mm 928 x 1712 x 992.5 mm 928 x 1712 x 992.5 mm 928 x 1712 x 992.5 mm 928 x 1944 x 992.5 mm 928 x 1944 x 992.5 mm 928 x 1944 x 992.5 mm
    Extractor canopy protruding section D x H 700 x 377 mm 700 x 377 mm 700 x 377 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm 624 x 395/485 mm
    Max load hook and rack lift 150 kg 150 kg 150 kg 150 kg 150 kg 150 kg 200 kg 200 kg 200 kg 200 kg 200 kg 200 kg
    Max load platform 150 kg 150 kg 150 kg 150 kg 150 kg 150 kg 200 kg 200 kg 200 kg 200 kg 200 kg 200 kg
    Max load HD plate 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg 350 kg
    Fuse, depending on voltage 50 / 63 / 63 A 16A 16A 63 / 80 / 80 A 16A 16A 63 / 80 / 80 A 16A 16A 80 / 100 / 100 A 16A 16A
    Power (electric), depending on voltage 30 / 35 / 40 kW 2.0 kW 2.0 kW 40 / 45 / 50 kW 2.0 kW 2.0 kW 40 / 45 / 50 kW 2.0 kW 2.0 kW 50 / 55 / 60 kW 2.0 kW 2.0 kW
    Power (heat) 28 / 33 / 38 kW 45 kW 45 kW 38 / 43 / 48 kW 50 kW 55 kW 38 / 43 / 48 kW 55 kW 55 kW 48 / 53 / 58 kW 60 kW 65 kW
    Average consumption, continuous baking* 18 / 21 / 24 kW/h 27 kW/h 27 kW/h 24 / 27 / 30 kW/h 30 kW/h 33 kW/h 24 / 27 / 30 kW/h 33 kW/h 33 kW/h 30 / 33 / 36 kW/h 36 kW/h 39 kW/h
    Weight plus hook 830 kg 1060 kg 1060 kg 950 kg 1000 kg 1000 kg 940 kg 1070 kg 1070 kg 1040 kg 1130 kg 1130 kg
    Weight plus platform 890 kg 1120 kg 1120 kg 1010 kg 1060 kg 1060 kg 1000 kg 1130 kg 1130 kg 1100 kg 1190 kg 1190 kg
    Door swing radius 860 mm 860 mm 860 mm 860 mm 860 mm 860 mm 970 mm 970 mm 970 mm 970 mm 970 mm 970 mm
    Window measurement 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm 244 x 1240 mm
    Certificates CE / EAC CE / EAC CE / EAC / NSF / ETL CE / EAC / NSF / ETL CE / EAC CE / EAC / NSF / ETL CE / EAC CE / EAC CE / EAC / NSF / ETL CE / EAC CE / EAC CE / EAC / NSF / ETL
    * Approx. 60% of installed power.
    Expand specifications Collapse specifications

    Measurement drawings

    Click image to enlarge.
    Rotating rack oven, baking oven c-series Sveba Dahlen Roll in rack oven, bakery oven C-Series Sveba Dahlen Rack oven rotating bakery baking c200 c-series sveba dahlen single rack oven rotating sveba dahlen c-series c250, drawing measurements

    Options & Accessories

    • Extra Well Insulated Floor

      With extra insulation the oven gets even more energy efficient as it keeps the heat in the oven. The floor is constructed from well-selected materials to achieve the best lifespan.

    • Frequency Converters Fans

      Frequency converters for fans regulates the airflow in rack ovens. Decrease or increase the airflow. Decreased airflow may be beneficial for delicate products. See option

    • AES: Automatic Evacuation System

      AES for Rack Ovens activates the fans at the end of a bake or when opening the door, to prevent hot and humid air to spread. See option

    • Slow Start

      Slow start for commercial rack ovens. Made for baking of smaller products, sensitive to rapid movements, bumps and blows. Slow and gentle movements of the rack make sure that the product stays in place. See option

    • Left-hand hinged door

      Left-hand hinged insulated door with double glazed window, spring loaded door hinge and door stop.

    • Rotating platform with adjustable ramp

      Also available in heavy duty execution – max 350 kg.

    • Automatic rack lifting device

    • Fully assembled oven

    • Canopy with or without fan

    • Connection for external ventilation system
