Combination Oven S-Series

The ultimate combination oven that offers perfect baking in a variety of combinations of mini rack oven, deck oven and underbuilt proofer in different sizes. The incredible flexibility makes it possible for every bakery business to find a combination that meets their needs.

Bakes all kind of baked products; pastries, breads and sour dough breads etc to perfection.

Find your distributor
buy combination oven for bakery, cafe, supermarket, store S-Series Sveba Dahlen
Combination oven S-Series with mini rack oven, deck oven and underbuilt proofer
high quality combination oven food service, bakery, instore S-Series Sveba Dahlen
High quality, flexible baking in S-Series Combination oven
S-Series Combination Oven with smart touch control panel. Energy efficient oven with high capacity, adapted for supermarket.
S-Series SR130 Stainless Steel
buy flexible combination oven for baking bakery, deck oven, mini rack oven, proofer all in one, S-Series
All-in-one combination oven! Mini rack oven, deck oven, underbuilt proofer
buy combination oven with deck oven rack oven S-Series SRD130 Sveba Dahlen
Combination Oven S-Series perfect for in-store baking
Combination oven with steam and stone sole S-Series Sveba Dahlen bakery store
In-store Combination Oven S-Series
Mini rack oven S-Series, the king of combination ovens Sveba Dahlen
S-Series - The King of Combination Ovens
Combination Oven mini rack oven and underbuilt proofer for retail bakeries, cafés, hotels sveba dahlen
SRP120 black rotating mini rack oven with underbuilt proofer
Combination Oven supermarket bakery, retail bakery, hotel, rotary oven, proofer sveba dahlen
SRP130 Combination Oven

    • Air Flow

      Optimized Air Flow treat the dough with even flow and with most care when baking, provides quick, even and economical baking.

    • Steam System

      Optimized, high quality and high capacity steam system. For a smooth, crisp crust or increased volume.

    • Rotation

      A rotating rack gives better and more even heat transfer to the products being baked. Allows for quick and more economical baking.

    • Sveba Connect

      Access a wide range of tools designed to give you full control of your baking – all the way, all the time, and all you want.

    • Easy to Clean

      Product with a clean design, removable parts and hygenic materials which facilitates cleaning.

    Product Overview

    Ultra-modern combination oven, available as mini rack oven, deck oven and underbuilt proofer

    The S-Series combination oven is an extremely flexible oven, perfect for the bakery and food service sectors that bake smaller volumes but still want to achieve the professional baking results traditionally offered by an industrial oven. The S-Series oven has both similar features and baking results of an industrial oven but requires significantly less space, thanks to its carefully engineered design, both in terms of footprint and appearance.

    With a user-friendly interface and optimized systems for all parts of the baking process, including heating systems, steam systems and the underbuilt proofers proving function, the S-Series offer very flexible baking regarding range of end products in small space. And with the proofer placed beneath the oven, baking flexibility is significantly enhanced. Ferment below and bake at the top – at the same time!

    The King of Combination Ovens

    The S-Series combination oven is equipped with features which makes it possible to bake everything from very delicate biscuits to larger pastries, bread rolls and stone baked sourdough bread with perfect results to the lowest cost per bake .

    The S-Series is electrically heated, but the SR242 and SRP242 models are gas-fired with a single-stage burner. The gas ovens always come equipped with a high-quality premix gas burner from Riello, which operates on natural gas or propane. They feature quick heating (250˚C = 16 minutes) and low energy consumption.

    The oven has been developed and manufactured to reflect Sveba Dahlen’s values: premium quality, user-friendly, reliable, professional and best baking results. This is the S-Series – The King of Combination Ovens!

    Features

    Key features for Combination Ovens

    For more specific product features per combinated unit, follow these links for Rack Ovens, Deck Ovens and Underbuilt Proofers.

    IBS Increased Baking Surface

    Our patented system for alternate rack rotation inside the oven provides faster, more even, and more energy-efficient baking. The system makes sure that the baked goods receive equal heat on all sides.
    Smart and energy efficient baking with the SD Touch II control panel for bakery deck oven

    SD Touch II Deck Oven

    It's easier than ever to control your oven and its settings. Get full control of the entire baking process and bake the best bread you have ever made! Record baking routines, load recipes and start your oven with the week schedule. It is easy to bake with the SD Touch II panel!
    Bakery rack oven with rotating rack and optimal air flow for baking on trays

    Air Flow

    Optimized Air Flow treat the dough with even flow and with most care when baking, provides quick, even and economical baking.

    Steam System

    Optimized, high quality and high capacity steam system. Gives a smooth, crisp crust and for some breads a significantly increased volume.

    EHDS for Optimized Proofing

    Fitted with EHDS - Effective Humidity Distribution System, which generates optimized distribution of steam in the proofing cabinet and results in best dough proofing results. Fermentation without dehydrating the dough!

    Good overview of the baking

    The door is fitted with a large heat-reflecting double glazed window. Efficient halogen light illuminates the oven compartment and gives the baker a clear overview of the baking process. This therefore tempts customers to buy products in store when they see the tasty pastries rotating inside the oven with the pleasant lighting.

    Steam free working environment

    The extractor canopy effectively catches heat and steam when the oven door is opened. The optional condensation unit effectively removes steam and moisture in the oven, which means an improved working environment.

    Responsible baking

    Customized features for baking with low energy consumption. The components and features are customized to offer the lowest energy-cost for baking. To save energy, the control panel offers a power-saving mode that turns off the lights, closes the damper and regulates the fan speed to low. The heat reflecting double glass window and the effective insulation keeps the heat inside the oven chamber. Our machines are also mainly recyclable, about 96% of the components in our machines can be recycled.

    Robust Stainless Steel Execution

    Robust construction with strong stainless steel frame and covers which gives the machine a long service life. Hygienic materials makes it easy to clean.

    Easy to Clean

    Product with a clean simple design, large smooth surfaces and/or rounded corners. Without frames or joints and/or removable interior parts. Hygenic materials such as stainless steel, which facilitates cleaning.

    Alarm Softer Sound Café

    Alarm signal adapted for instore use - adjust volume and signal type to a more pleasant signal for crowded areas. (Rack Oven / Mini Rack Oven SR)

    Cool handle

    Ergonomic handle that keeps cool while baking. Great grip makes it easy to open and close and great locking mechanism.

    Strong insulation

    Ensures that the heat stays in the oven chamber and keeps the oven energy efficient.

    Preset recipes in the panel

    The oven comes with 11 pre-programmed recipes in the digital SD Touch II panel. The pre-installed recipes are based on general weights and products and not details about raw materials and type.The recipes are in English.

    Specifications

    Technical specifications

    SR120

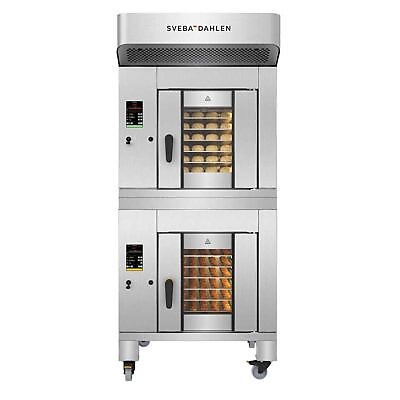

    buy combination oven for bakery baking double mini rack oven SR120DS S-Series Sveba Dahlen
    SR120DS

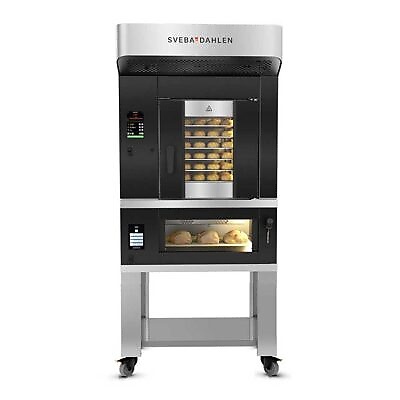

    buy combination oven with deck and rack oven and steam S-Series Sveba Dahlen
    SRD120

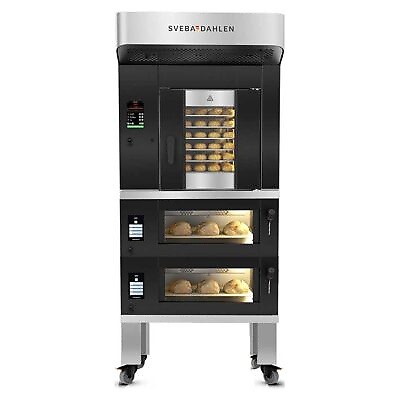

    combination oven flexible rack oven deck oven S-Series Sveba Dahlen
    SR2D120

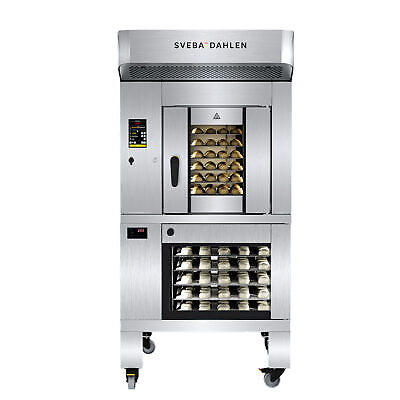

    Mini Rack Oven with rotating rack and underbuilt proofer SRP120 Sveba Dahlen
    SRP120
    buy combination oven for bakery, cafe, supermarket, store S-Series Sveba Dahlen
    SRDP120
    SR130
    combination oven flexible baking deck oven rack oven black SRD130 S-Series Sveba Dahlen
    SRD130
    Combination Oven rack oven proofer cabinet instore bakery baking small footprint s-series srp130 sveba dahlen
    SRP130

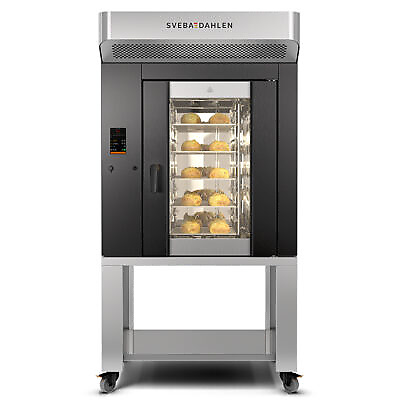

    High Capacity supermarket and cafe oven. Energy efficient baking with the best results. Commercial baking in limited space.
    SR240
    Buy electric- or gasfired rotary mini rack oven with underbuilt proofer for instore retail bakery s-series srp240 srp242 sveba dahlen
    SRP240
    buy combination oven for bakery, cafe, supermarket, store S-Series Sveba Dahlen
    SR242
    electric heated or gas heated combination oven rotating mini rack oven and underbuilt proofer supermarket oven bakery SRP240 SRP242 Sveba Dahlen
    SRP242
    Heating Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Gas Gas
    Modules included in combination Rack Oven 2 x Rack Oven Rack Oven + Deck Oven Rack Oven + 2 x Deck Oven Rack Oven + Underbuilt Proofer Rack Oven + Deck Oven + Underbuilt Proofer Rack Oven Rack Oven + Deck Oven Rack Oven + Underbuilt Proofer Rack Oven Rack Oven + Underbuilt Proofer Rack Oven Rack Oven + Underbuilt Proofer
    Fuse (amp) 25A 25A / 25A 25A / 16A 25A / 16A / 16A 25A / 10A 25A / 16A / 10A 32A 32A / 16A 32A / 10A 32A 32A / 10A 16A 16A / 10A
    Baking area stone sole, deck oven [mm] - - 630 x 450 mm 2 x 630 x 450 mm - 630 x 450 mm - 630 x 450 mm - - - - -
    Max. dough weight, rack oven [kg] 25 kg 2 x 25 kg 25 kg 25 kg 25 kg 25 kg 40 kg 40 kg 40 kg 40 kg 40 kg 40 kg 40 kg
    Power heat, rack oven (gas) - - - - - - - - - - - 28 kW 28 kW
    Swing radius, rack oven [mm] 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm 765 mm 765 mm 765 mm 765 mm
    Power, total [kW] 14.3 kW 28.6 kW 19.8 kW 25.3 kW 15.7 kW 21.2 kW 21.2 kW 26.7 kW 22.6 kW 21.2 kW 22.6 kW 1 kW 2.4 kW
    Power, rack oven [kW] 14.3 kW 2 x 14.3 kW 14.3 kW 14.3 kW 14.3 kW 14.3 kW 21.2 kW 21.2 kW 21.2 kW 21.2 kW 21.2 kW 1 kW 1 kW
    Power, deck oven [kW] - - 5.5 kW* 2 x 5.5 kW* - 5.5 kW* - 5.5 kW* - - - - -
    Power, underbuilt proofer [kW] - - - - 1.4 kW 1.4 kW - - 1.4 kW - 1.4 kW - 1.4 kW
    Average consumption, total [kW/h] ** 8.6 kW/h 17.2 kW/h 11.9 kW/h 15.2 kW/h 9.4 kW/h 12.7 kW/h 12.7 kW/h 16.0 kW/h 13.6 kW/h 12.7 kW/h 13.6 kW/h 1 kW/h 1.8 kW/h
    Average consumption, deck oven [kW] ** - - 3.3 kW/h 2 x 3.3 kW/h - 3.3 kW/h - 3.3 kW/h - - - - -
    Average consumption, rack oven [kW] ** 8.6 kW/h 2x 8.6 kW/h 8.6 kW/h 8.6 kW/h 8.6 kW/h 8.6 kW/h 12.7 kw/h 12.7 kw/h 12.7 kw/h 12.7 kw/h 12.7 kw/h 1 kW/h 1 kW/h
    Average consumption, proofer [kW] ** - - - - 0.84 kW 0.84 kW - - 0.84 kW - 0.84 kW - 0.84 kW
    Max. baking temperature, rack oven 300°C 2 x 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C 300°C
    Max. baking temperature, deck oven - - 280°C 2 x 280°C - 280°C - 280°C - - - - -
    Max. temperature, underbuilt proofer - - - - 60°C 60°C - - 60°C - 60°C - 60°C
    Max diagonal tray Ø mm - - - - - - - - - 806 mm 806 mm 806 mm 806 mm
    Max tray size, rack oven [mm] 600 x 400 600 x 400 600 x 400 600 x 400 600 x 400 600 x 400 600 x 400 600 x 400 600 x 400 700 x 470 700 x 470 700 x 470 700 x 470
    Max tray size, deck oven [mm] - - 600 x 400 mm 600 x 400 mm - 600 x 400 mm - 600 x 400 mm - - - - -
    Max tray size, proofer [mm] - - - - 600 x 800 mm 600 x 800 mm - - 600 x 800 mm - 700 x 470 mm - 700 x 470 mm
    Max no. of trays rack oven, 600 x 400 mm 6 pcs 2 x 6 pcs 6 pcs 2 x 6 pcs 6 pcs 10 pcs 10 pcs 10 pcs 10 pcs 10 pcs 10 pcs 10 pcs 10 pcs
    Max no. of trays rack oven, 600 x 450 mm - - - - - - - - - 10 pcs 10 pcs 10 pcs 10 pcs
    Max no. of trays deck oven, 600 x 400 mm - - 1 pcs 2 x 1 pcs - 1 pcs - 1 pcs - - - - -
    Max number of trays 400 x 600 mm, proofer - - - - 10 pcs 10 pcs - - 10 pcs - 10 pcs - 10 pcs
    Guide width 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm 25 or 50 mm
    Distance between guides 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 6 trays = 72 mm / 5 trays = 86 mm / 4 trays = 105 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm 10 trays = 84 mm / 8 trays = 104 mm / 6 trays = 139 mm
    Weight (kg) 250 490 370 490 380 500 370 490 500 380 520 410 550
    Dimensions, L × W × H (cm) 124.3 × 99 × 207.4 124.3 × 99 × 224.5 124.3 × 99 × 229 124.3 × 99 × 222.9 124.3 × 99 × 207.4 124.3 × 99 × 222 116.4 × 99 × 224.5 124.3 × 99 × 225.4 121.3 × 99 × 224.5 116.4 × 116.8 × 224.5 121.3 × 116.8 × 224.5 116.4 × 116.8 × 224.5 121.3 × 116.8 × 224.5
    ** During continuous baking Approx. 60% of installed power.
    Expand specifications Collapse specifications

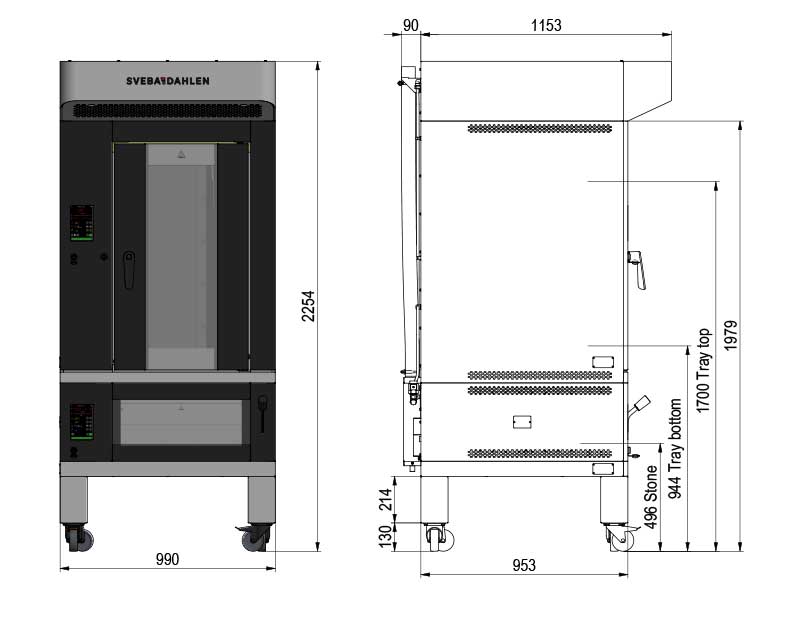

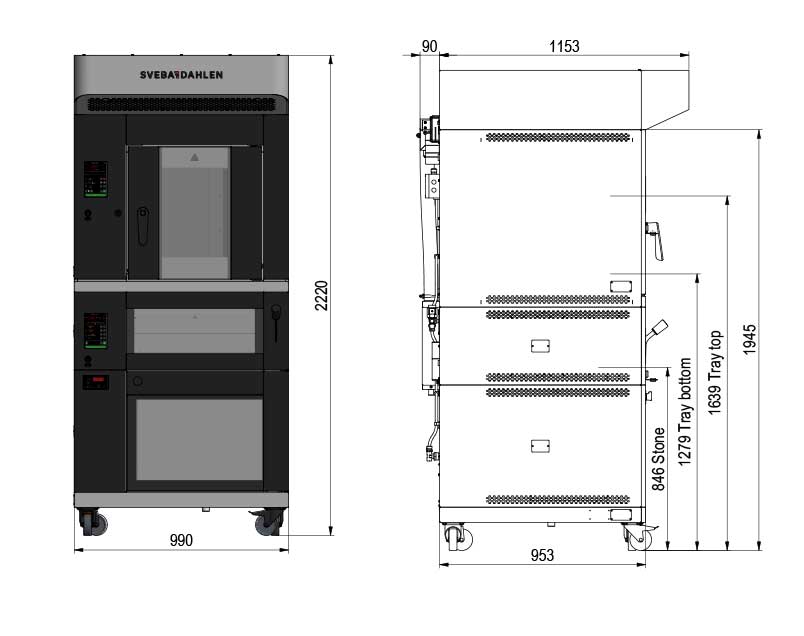

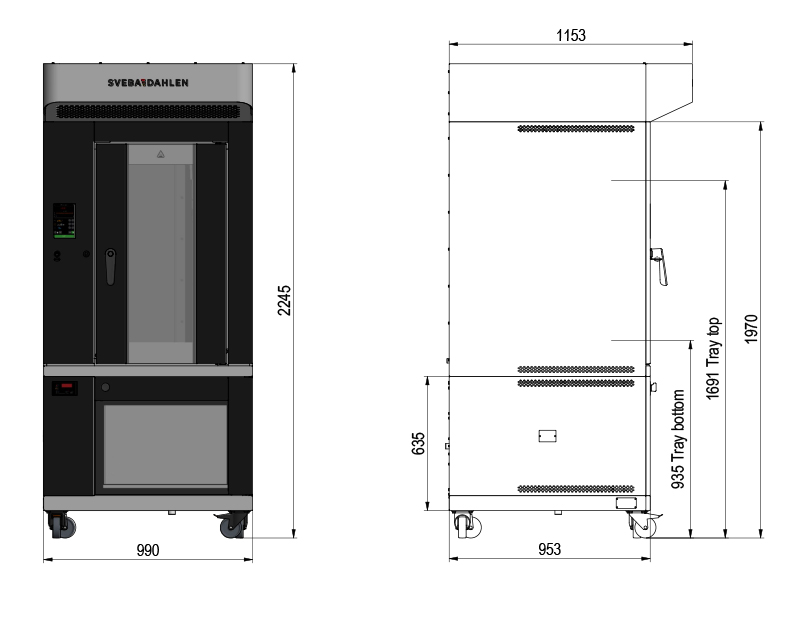

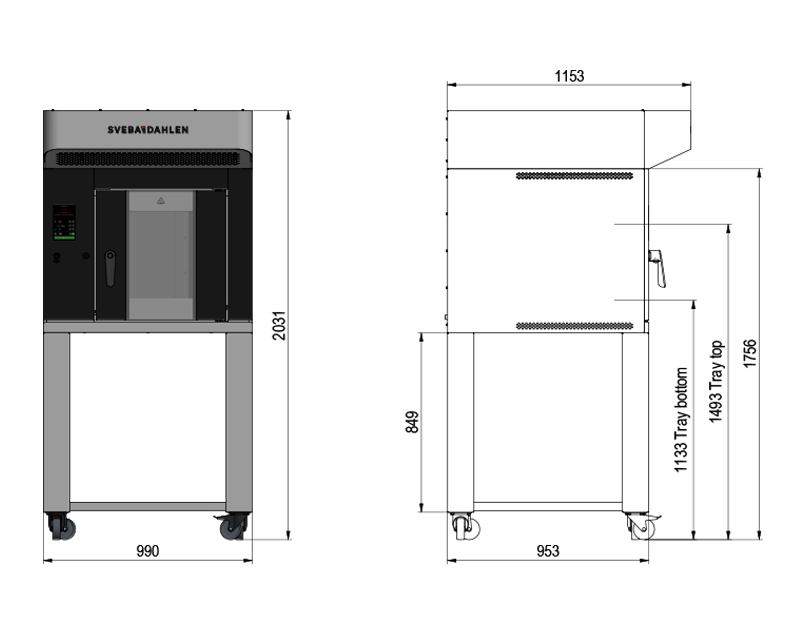

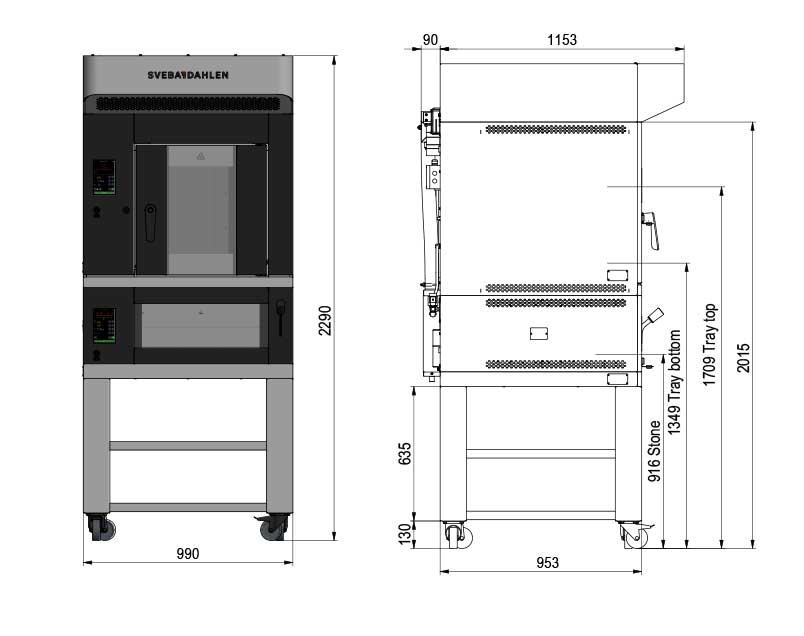

    Measurement drawings

    Click image to enlarge.
    In-store bakery oven with Sveba Dahlen S-Series SR120 with SD Touch 2 panel baking oven combination oven flexible double mini rack oven S-Series Sveba Dahlen Combination Oven mini rack oven, deck oven S-Series Sveba Dahlen Combination oven flexible baking mini rack oven and 2 deck ovens sveba dahlen Optimal and flexible baking instore with mini rack oven S-Series with underbuilt proofer Sveba Dahlen All-in-one oven, rotating mini rack oven, deck oven and underbuilt proofer SRDP120 Sveba Dahlen Instore mini rack oven S-Series SR130 is optimized for baking in supermarket cafe small bakeries Instore bakery oven, In-store oven, baking oven, mini-rack-oven, deck oven, s-series,sveba dahlen Flexible baking combination oven S-Series SRP130 with underbuilt proofer - offer fermentation and baking in limited space Baking oven for instore use, S-Series S240 offers flexible and optimal baking of pastries,cookies,bread,sour dough bread,buns Flexible instore baking oven with large capacity, the S-Series SRP240 with underbuilt proofer In-store oven S-Series can be equipped with underbuilt shelf for extra storage In-store oven S-Series with underbuilt tray rack, effective storage in limited space

    Options & Accessories

    • Frequency Converters Fans

      Frequency converters for fans regulates the airflow in rack ovens. Decrease or increase the airflow. Decreased airflow may be beneficial for delicate products. See option

    • Rack Oven door options

      • Left-hand hinged door with double glazed window (for rack oven only).
      • Three-glazed door, left or right-hand hinged (for rack oven only).

    • Extra tray racks

      • Extra rack for 4, 5 or 6 trays. Guides 25 mm or 50 mm for SR120 and SRP120.
      • Extra rack for 6, 8 or 10 trays. Guides 25 mm or 50 mm for SR130, SRP130, SR240 and SRP240.
      • Underbuilt tray rack for 10 trays (12 trays with SR120). Adjustable regarding tray size (trays are not included). Not available with proofer, SRDP120, SR120DS, SR2D120, SRD130 or Extra Shelf.

    • Condensation unit

      Condensation unit (not available with Canopy with fan, SR242 or SRP242).

    • Canopy with fan

      Canopy with fan in stainless steel (not available with Condensation unit).

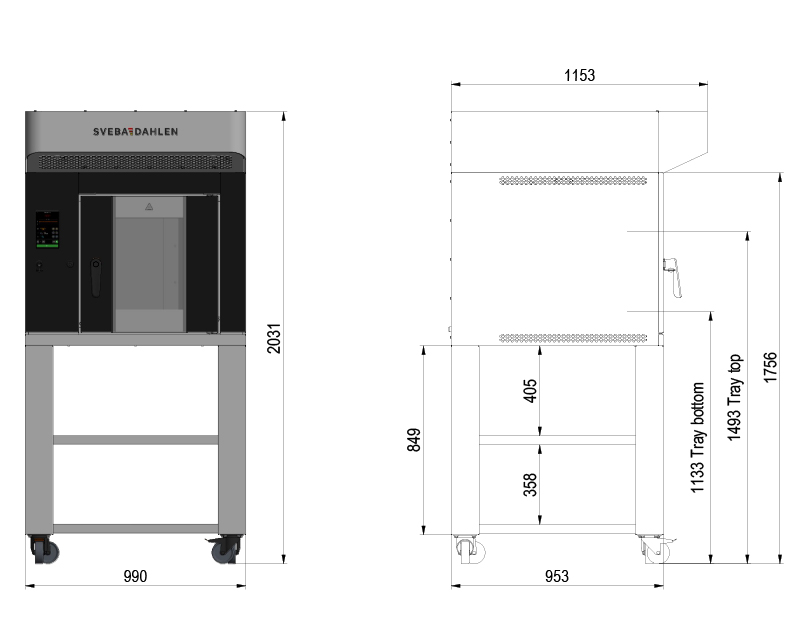

    • Extra shelf

      Extra storage shelf in sheet metal (stainless steel), placed between oven legs below the oven (not in combination with Tray rack for 10 trays).

    • Delivered assembled

      For combinations with proofer or deck oven. (Canopy, legs and castors are delivered seperatly and are not assembled)

    • Automatic rotation stop

    • Black Design
